Chantier Bazan Espagne BAZAN 57 LICOR 43

DONS'T MISS THIS OPPORTUNITY TO ACQUIRE A CLASSIC CRUISER-RACER.
SOON IT WILL BE  READY TO SAIL, COMPETE OR GO ON EXPEDITIONS IN THE ARTIC/ANTARCTIC.

ALMOST NEW WITH AN IMPORTANT REFIT

LICOR 43

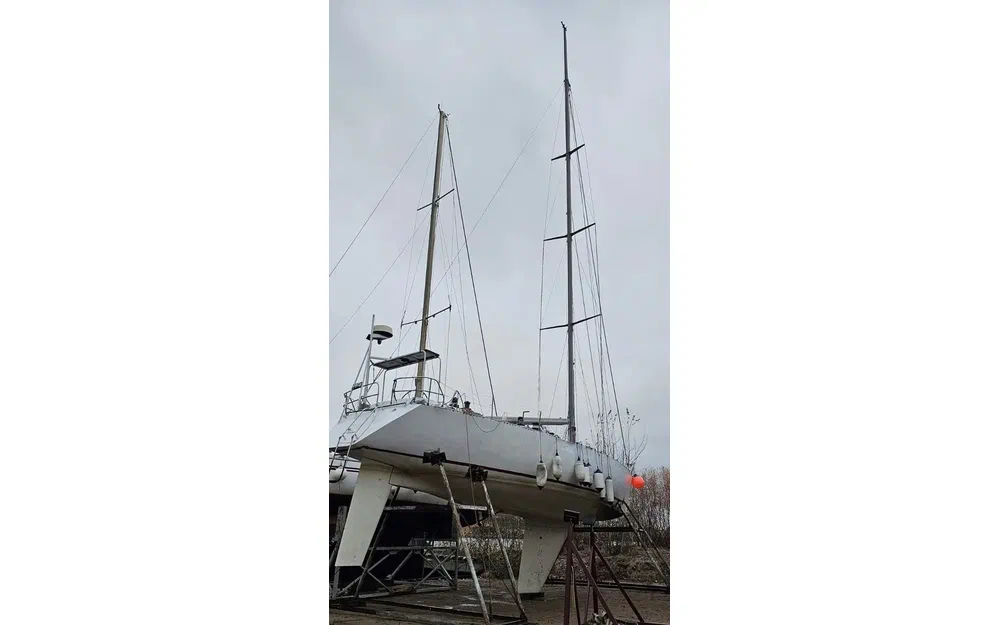

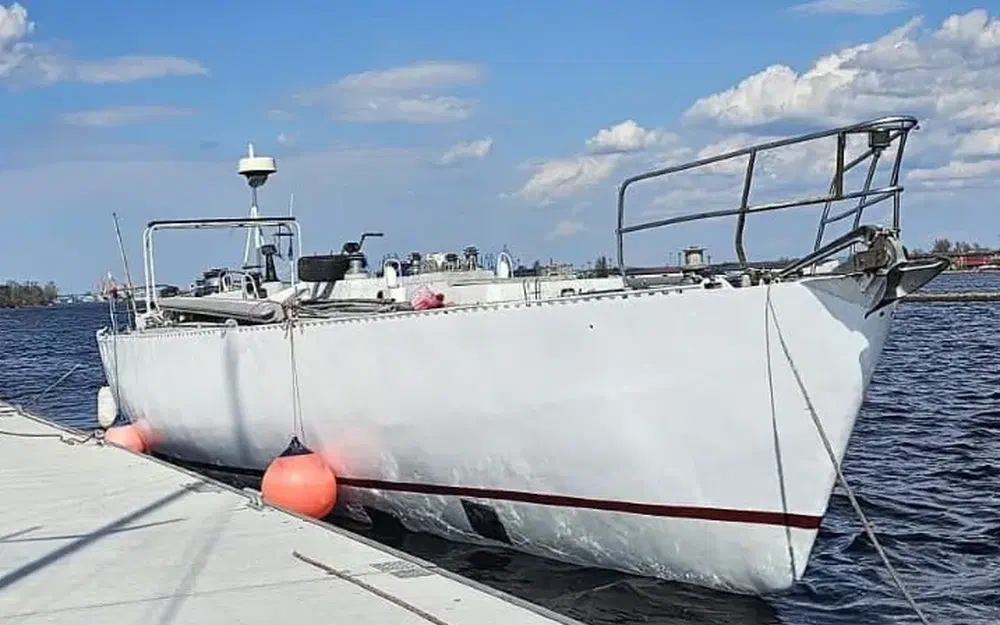

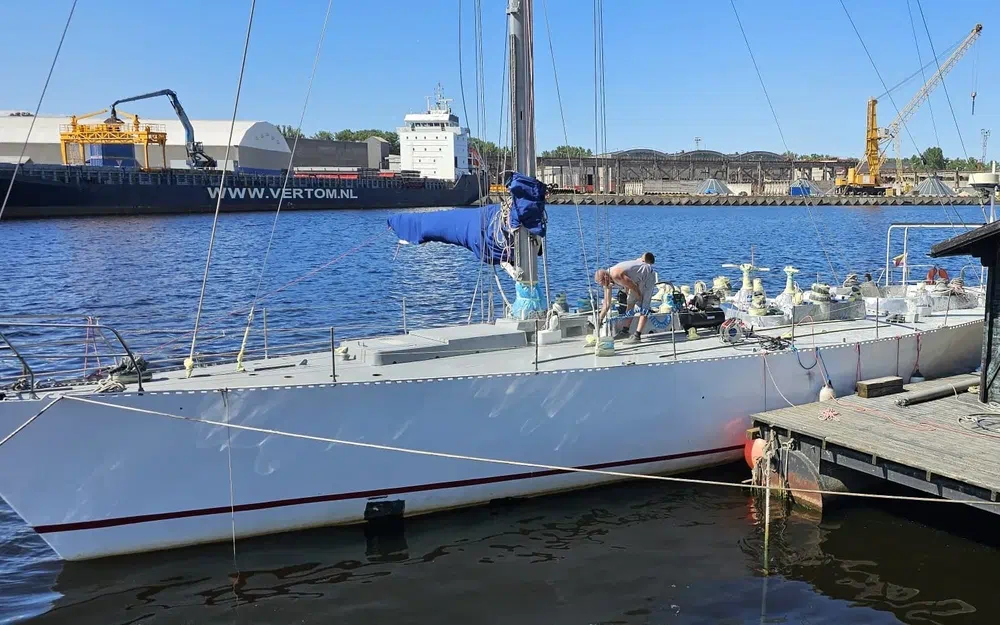

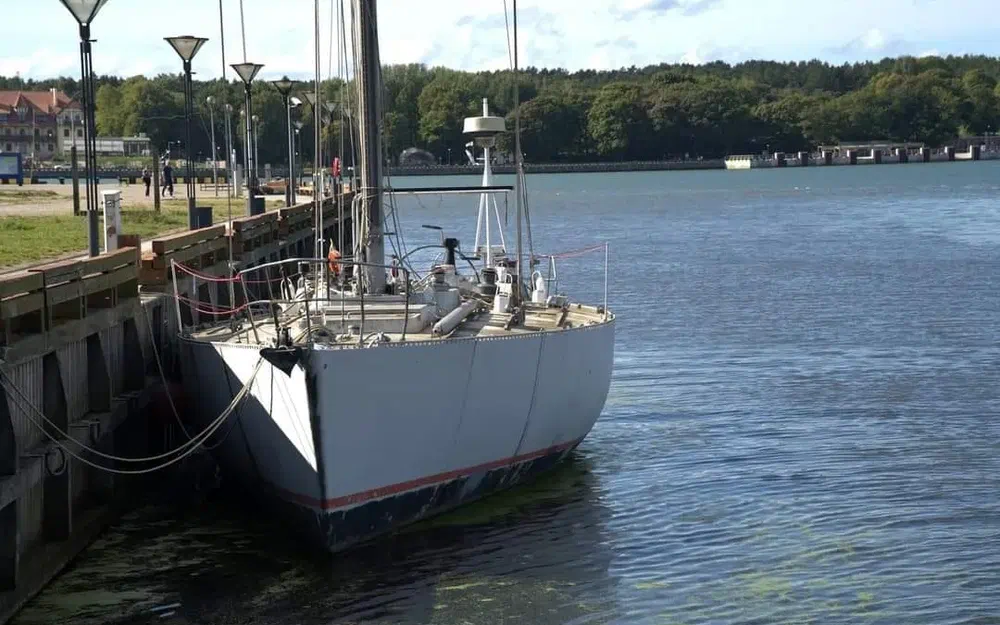

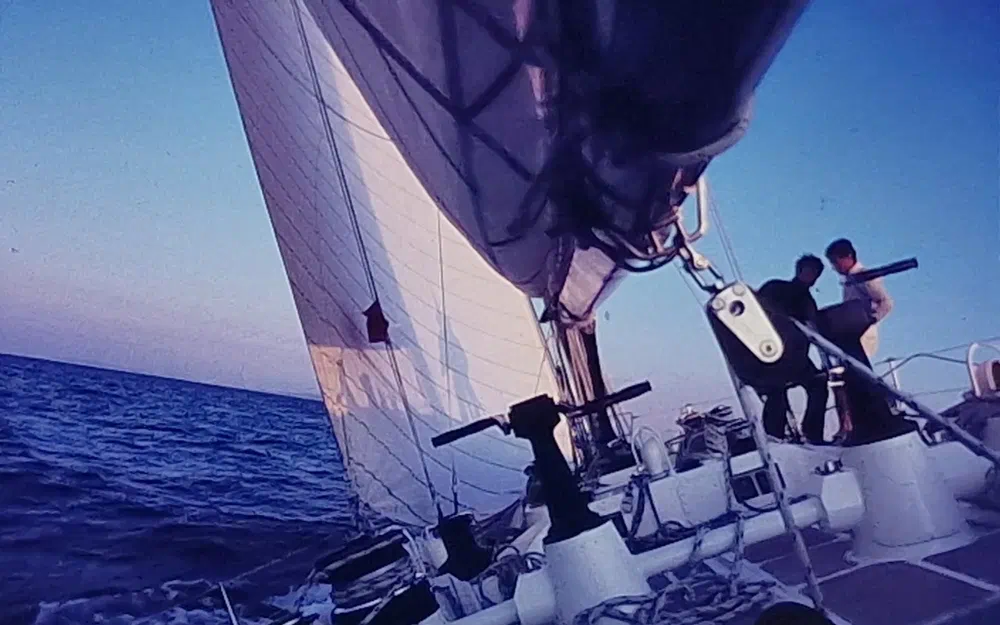

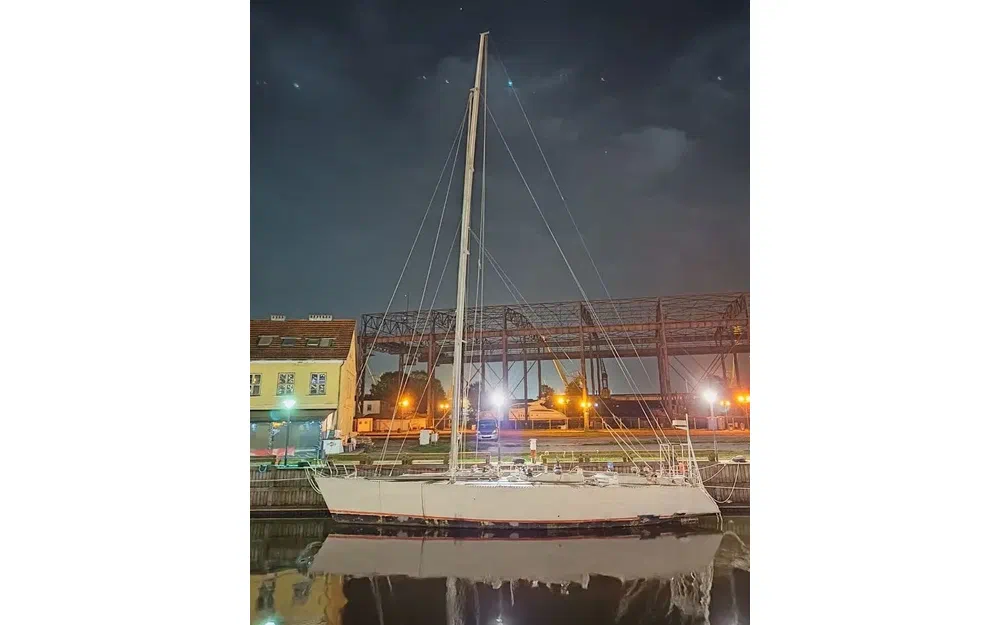

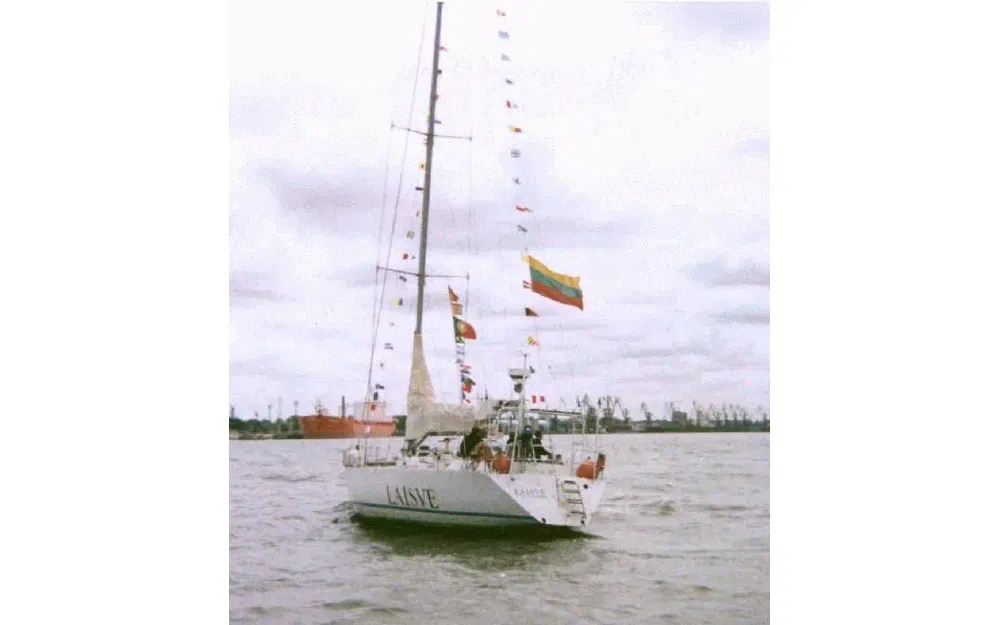

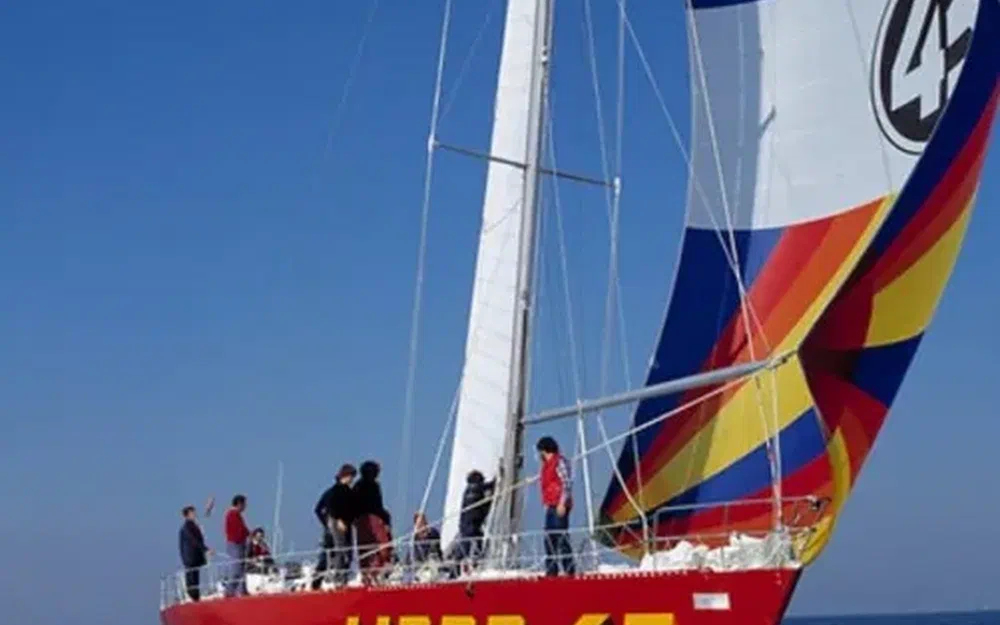

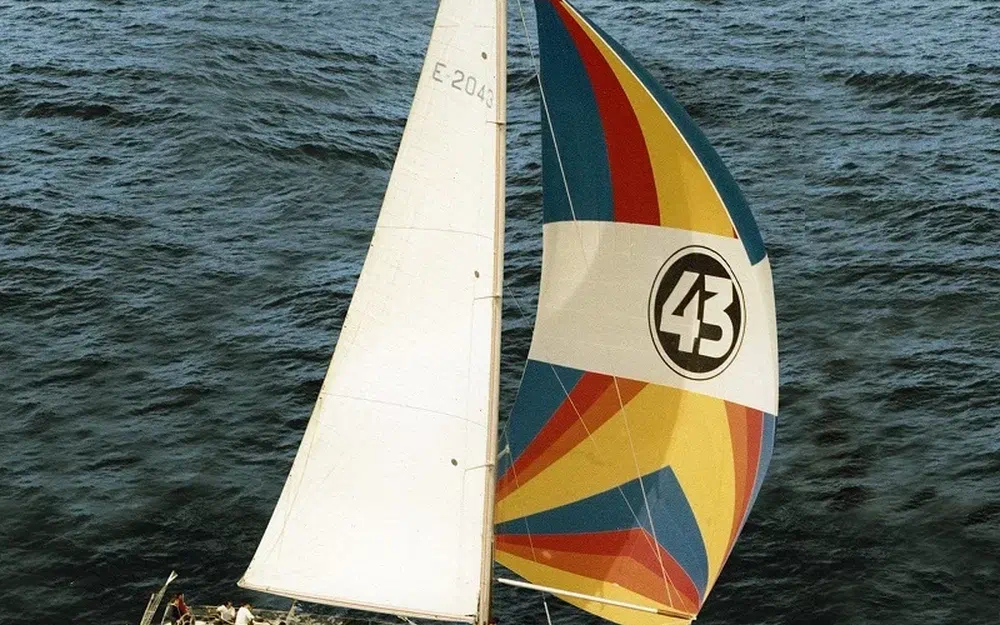

60 foot aluminum sloop was built in Spain, in Cartagena E.N.Bazan navy shipyard in 1981. Architets: J. Coello, P. Morales. Constructor: EMPRESA NACIONAL BAZAN (Cartagena). She was designed and built for 1982 Whitbread Race. She took part in the Race as Spain entreeLiquor 43.Later she was transformed to fast cruiser and used as a charter boat till 1991 in Spain. In 1992 took part in Columbus Race to USA (4 th place ) , in 1993-5 completed a circumnavigation .In 2003-4-2025 underwent major refit and upgrades, including hull work and repaint, interior work. The boat is currently in Riga which is Latvia. The boat is registered in Lithuania Klaipeda, and currently is under Lithuanian flag.

 FEFIT MAJOR WORKS WERE DONE FOR LAST 2 YEARS

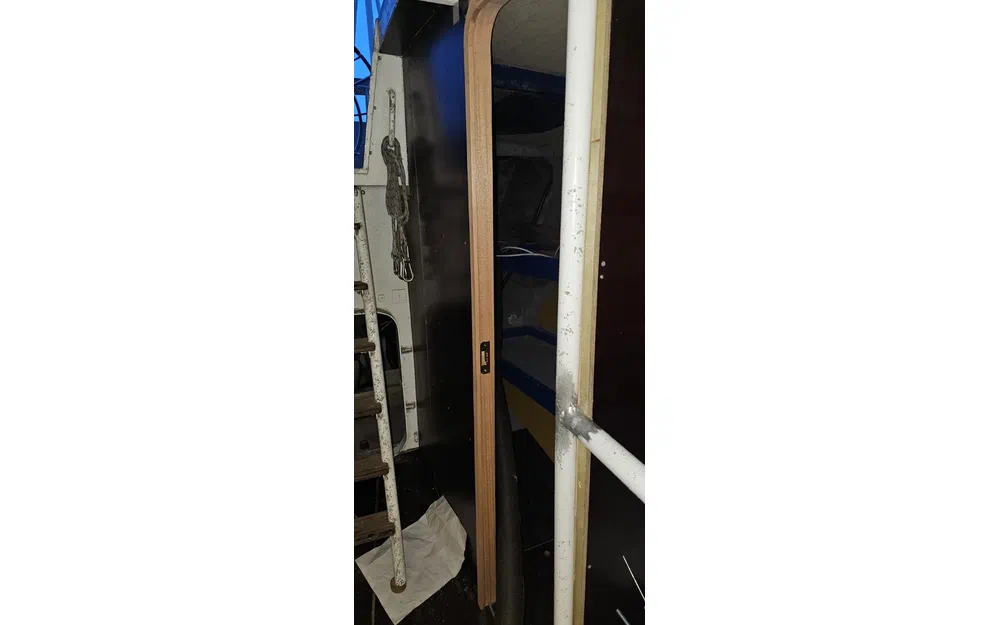

NEW INTERIOR

NEW ELECTRONICS

NEW/USED SAILS

ALMOST READY FOR NEXT ORC 2027

Builder: Bazan Cartagena

Designer: Joaquin Coello & Pedro Morales

Shipyard: Navantia

BUILT FOR WHITBREAD 1981 MAXI AS LICOR 43 NOW, PERFECT BOAT FOR CHARTER ARTIC EXPEDITIONS.

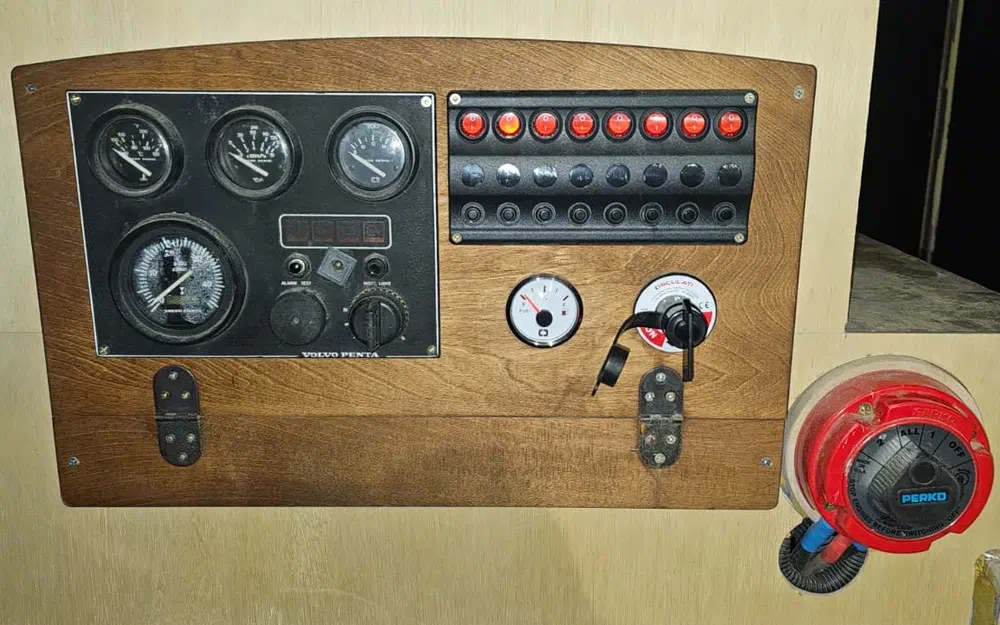

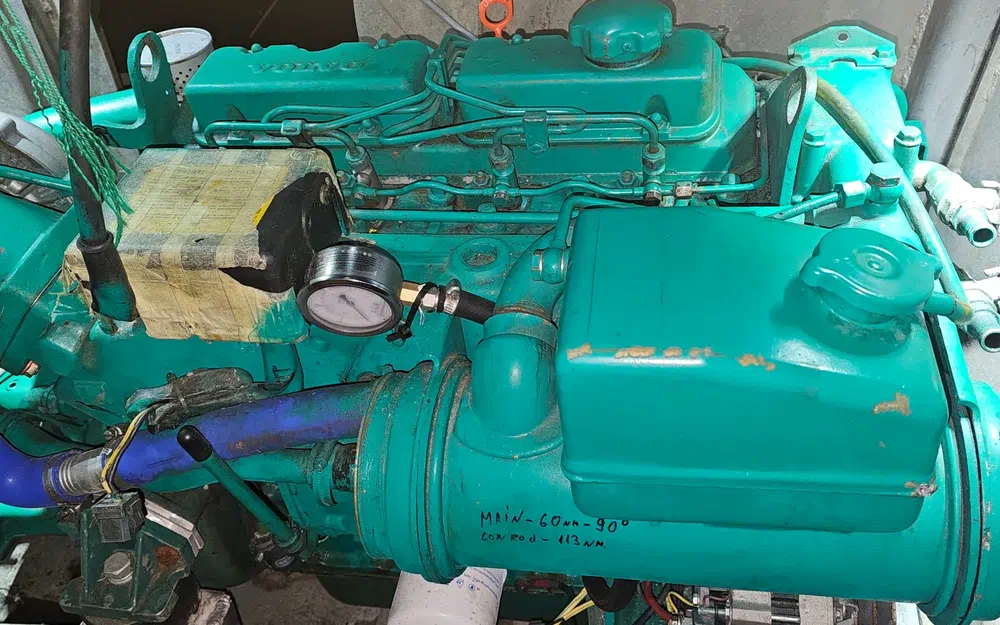

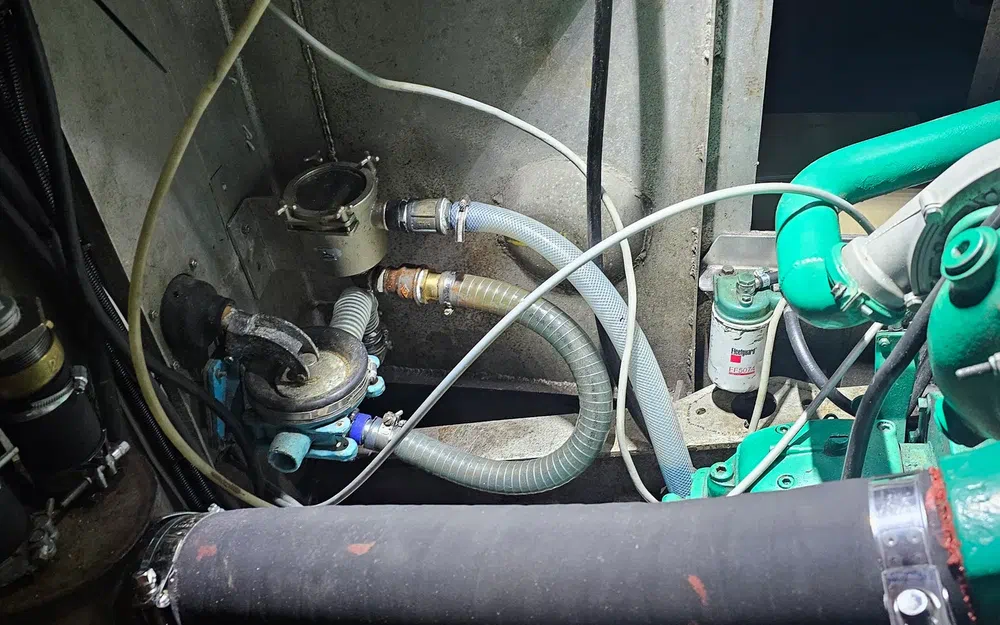

ENGINE

Engines: Volvo TMD31a

Engine Hours: 970

Propeller: 3 blade

Cruising Speed: 11 kn

NOTES: Engine after overhaul

Volvo Penta TMD31A, with only 970 hours.

Modifications:

The oil pump, all bearings, spark plugs, and turbocharger were replaced, and the oil cooler was reconditioned.

There should be no problems with the engine for the next 10 years.

TANKS

Fuel: 2 tank 700 litres l

Water: 1000 l

Two manual bilge pumps and the bilge system has its own wiring, plus six electric pumps (two in the enclosed engine areas).

GALLEY

Water system: Hoses

Notes: Galley condition: 2 big handwasher from 316L very solid,

NAVIGATION INSTRUMENTS

VHF: lowrance link 6

Compass: yes

Radar: Kelvin&Huges

 FULL NEW ELECTRONICS

12v system all wires are new include project.

 vhf Lowrance Link 6 at the moment.

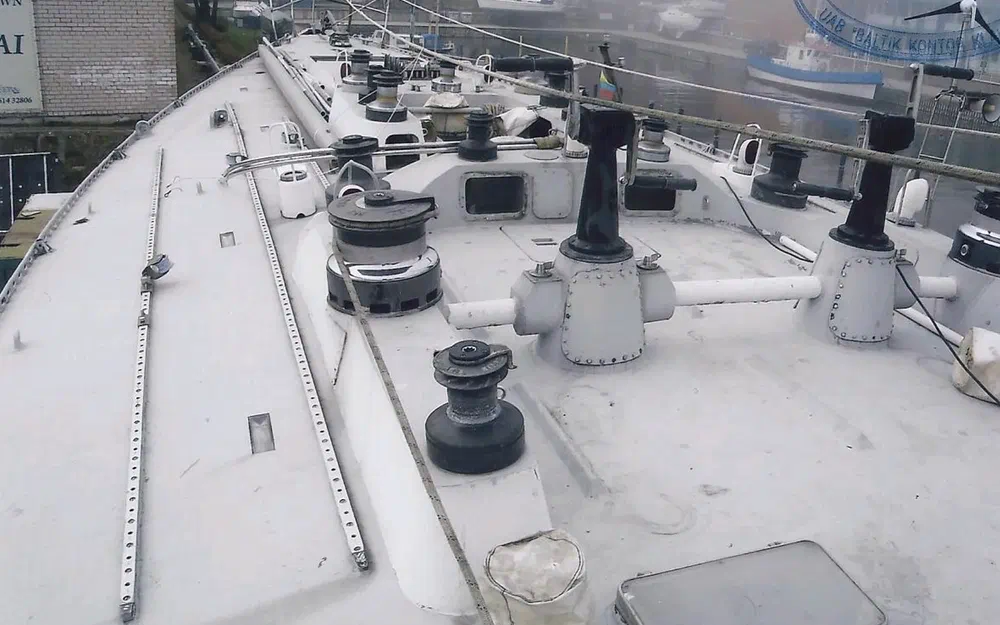

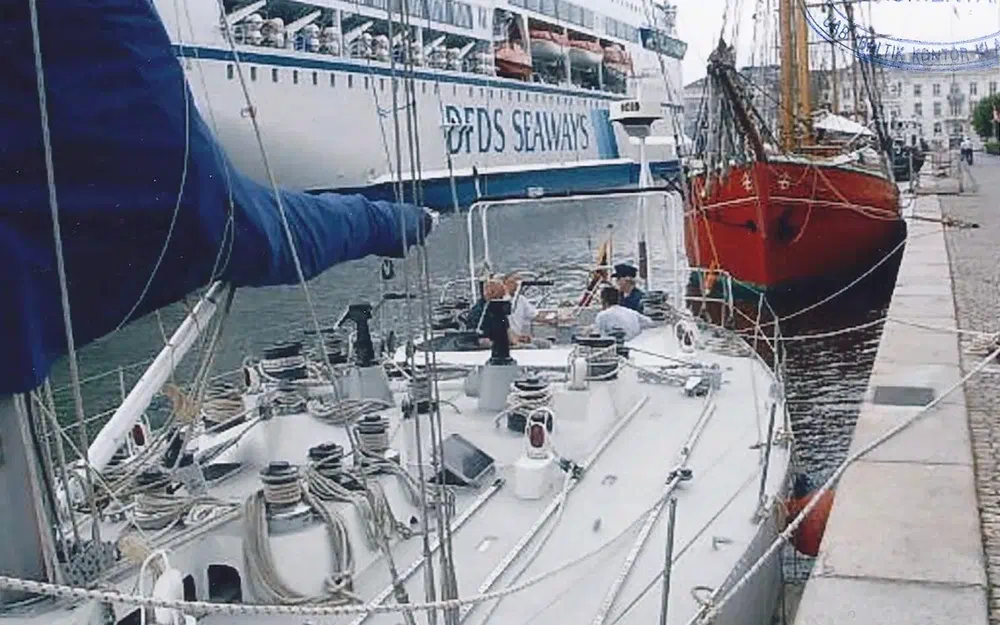

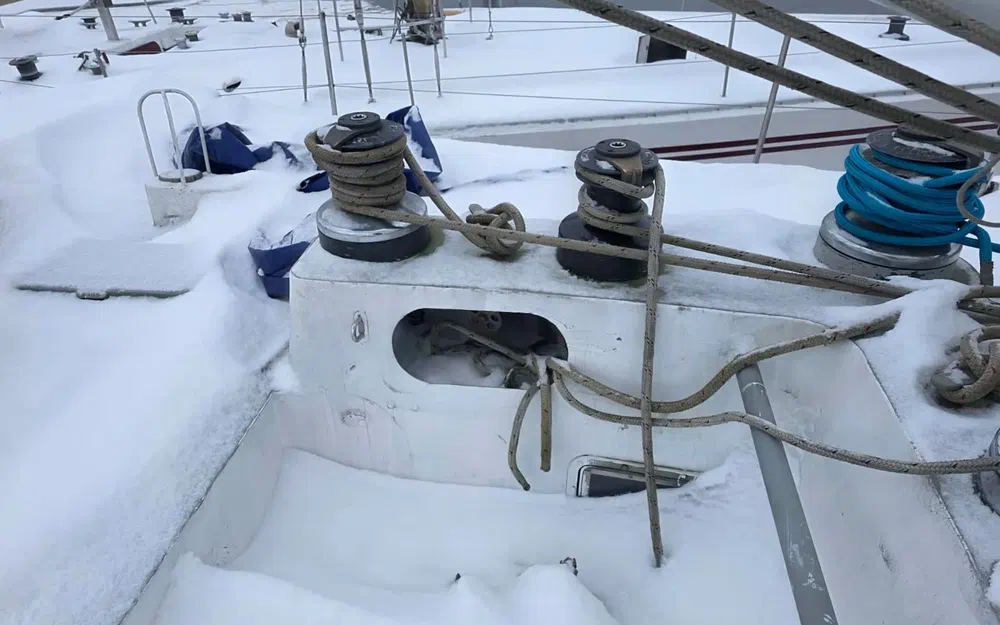

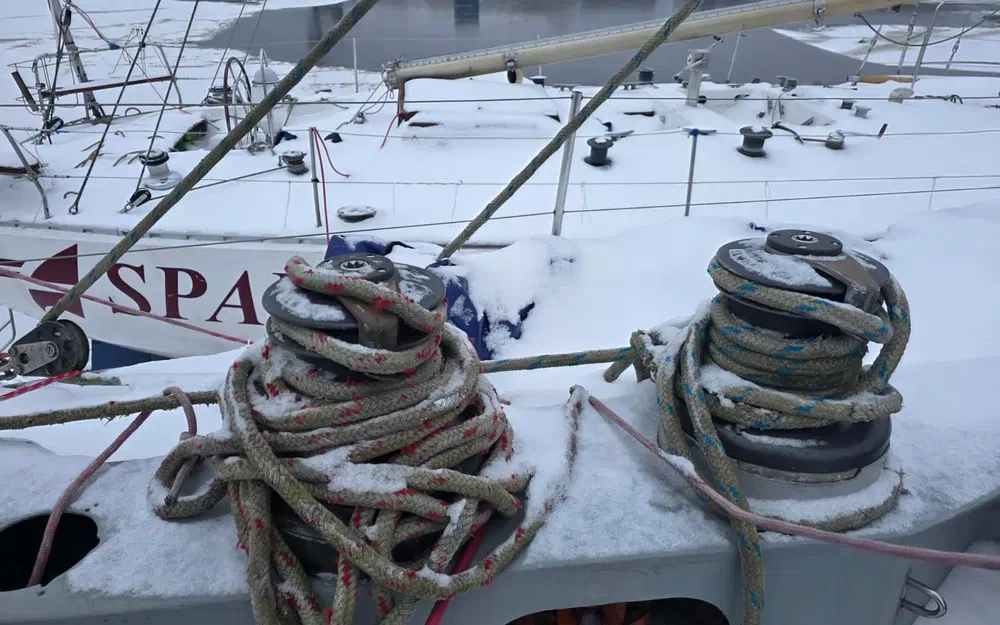

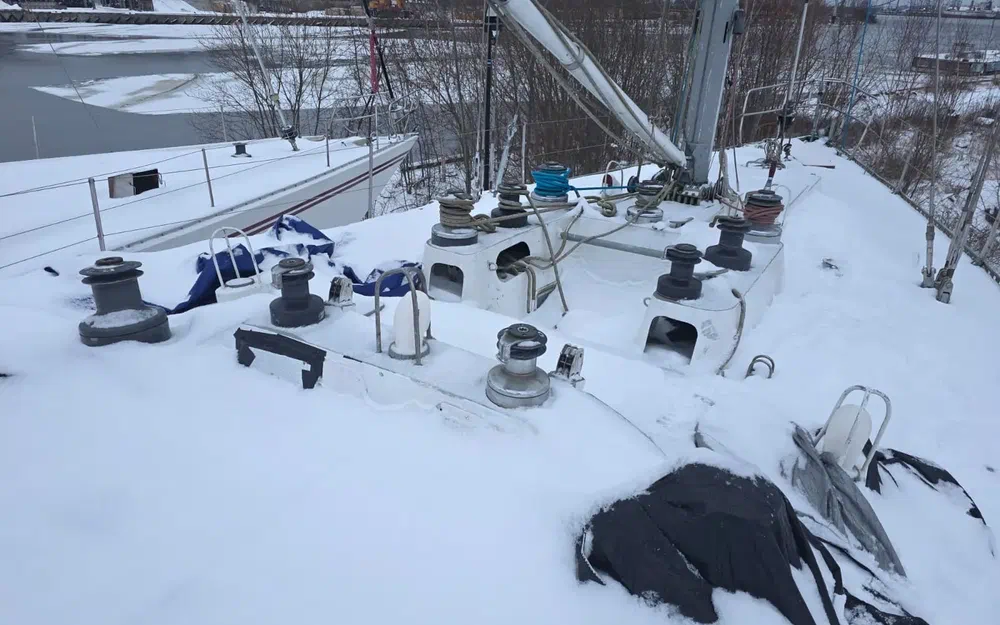

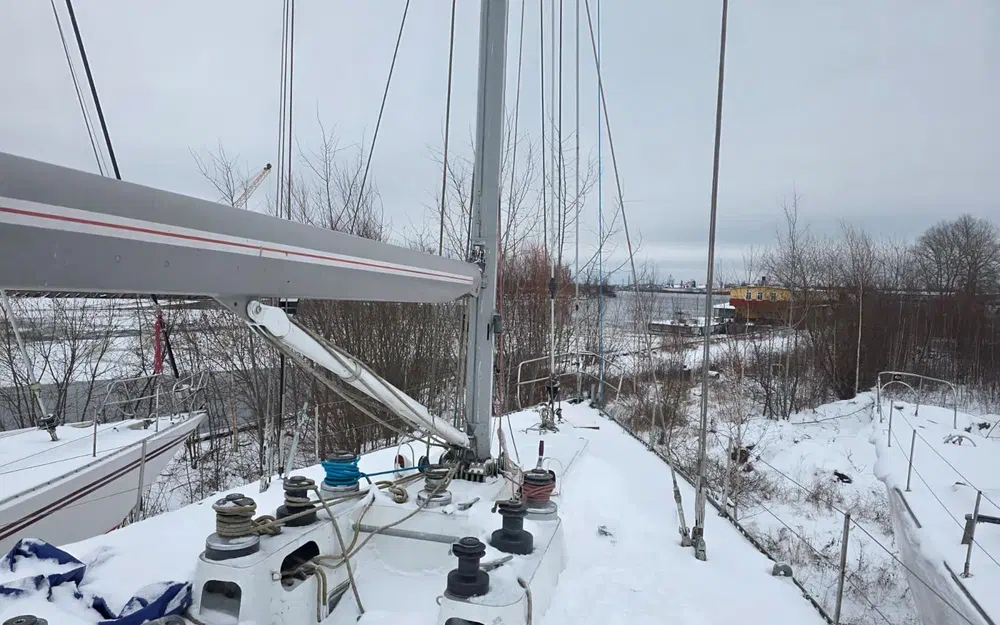

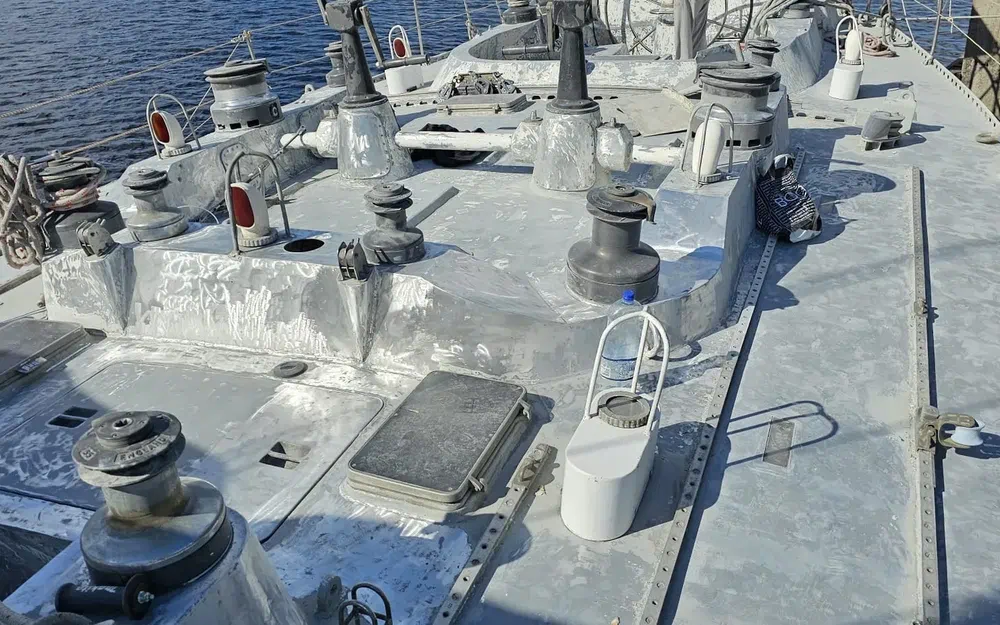

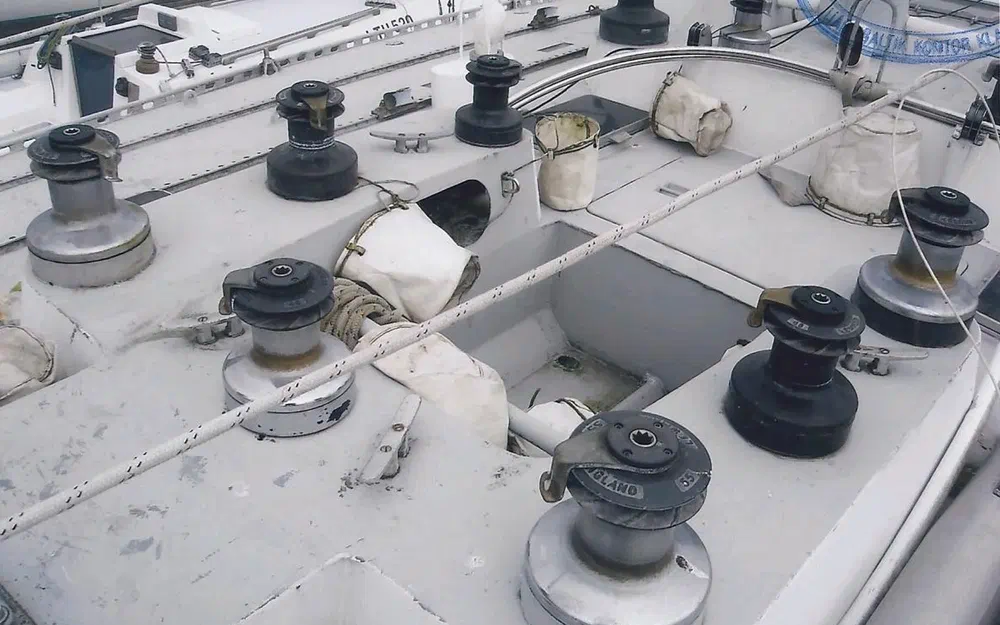

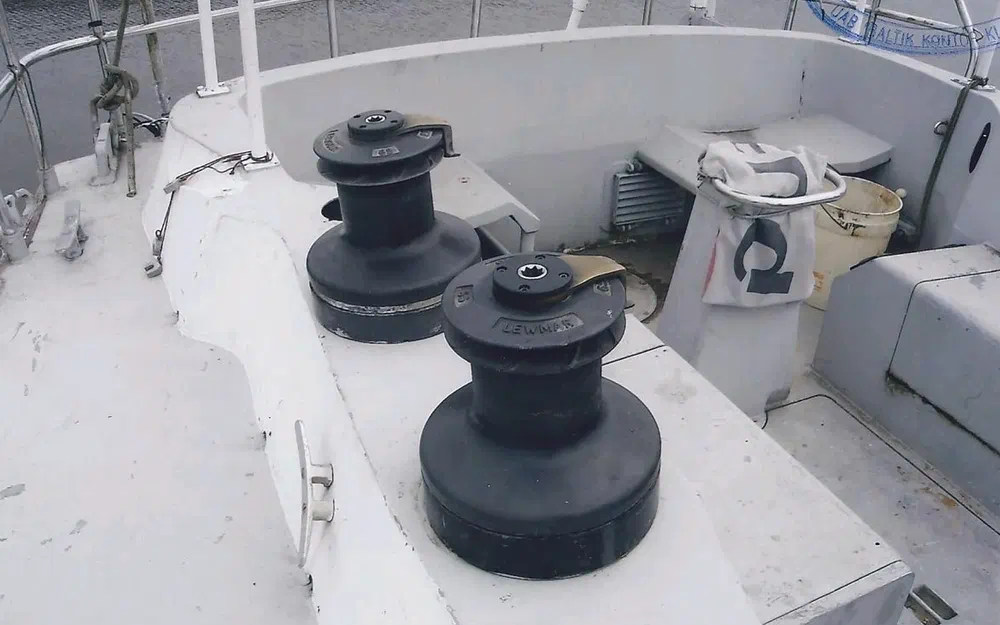

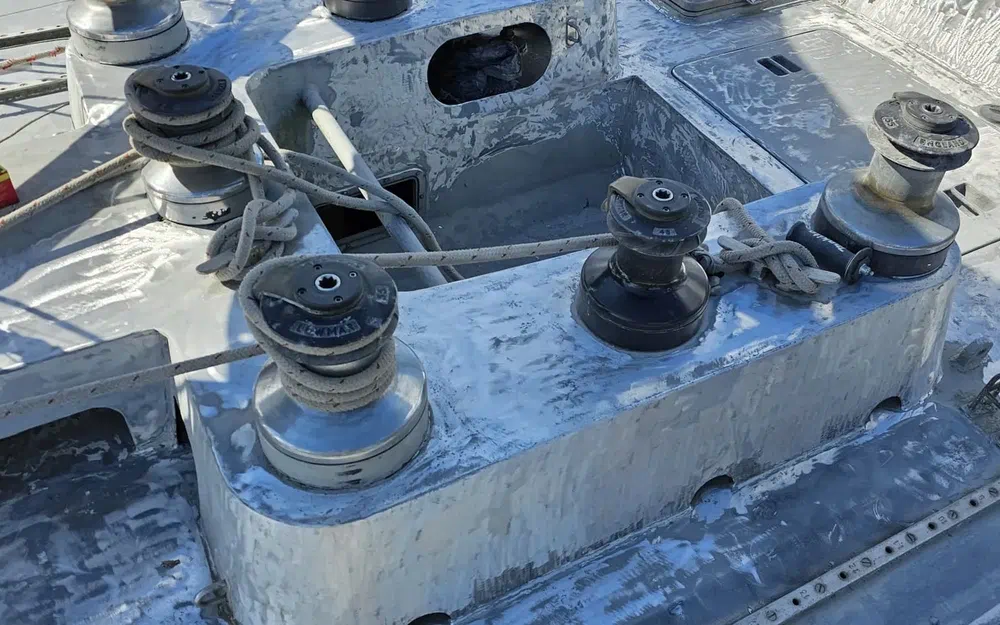

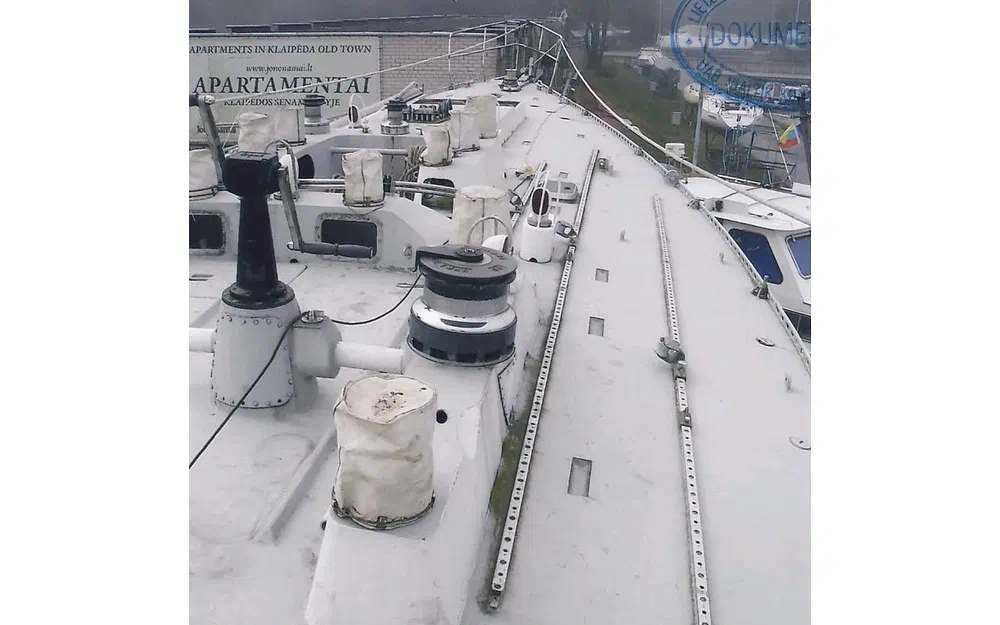

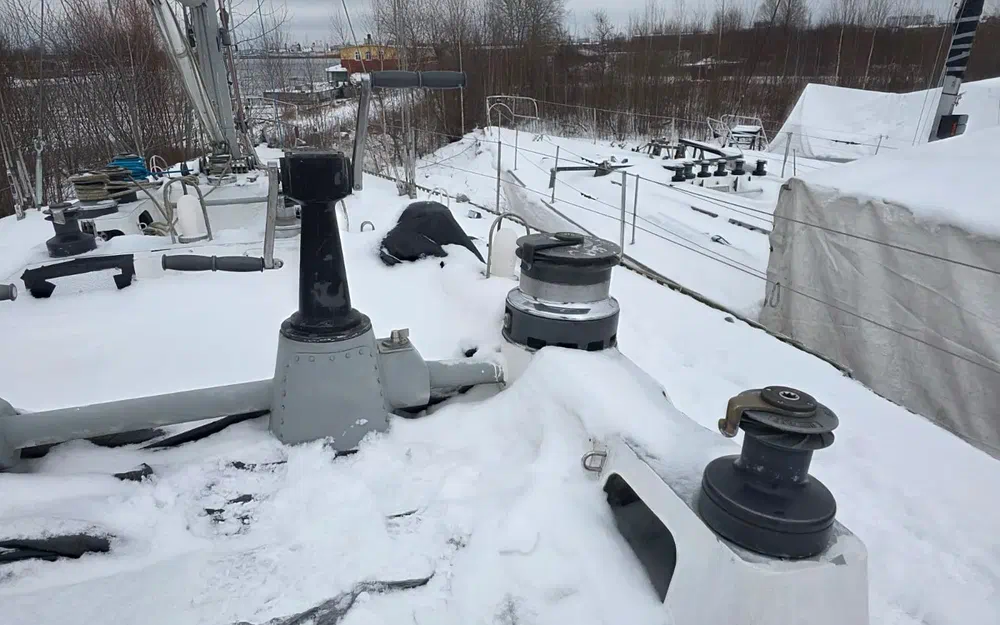

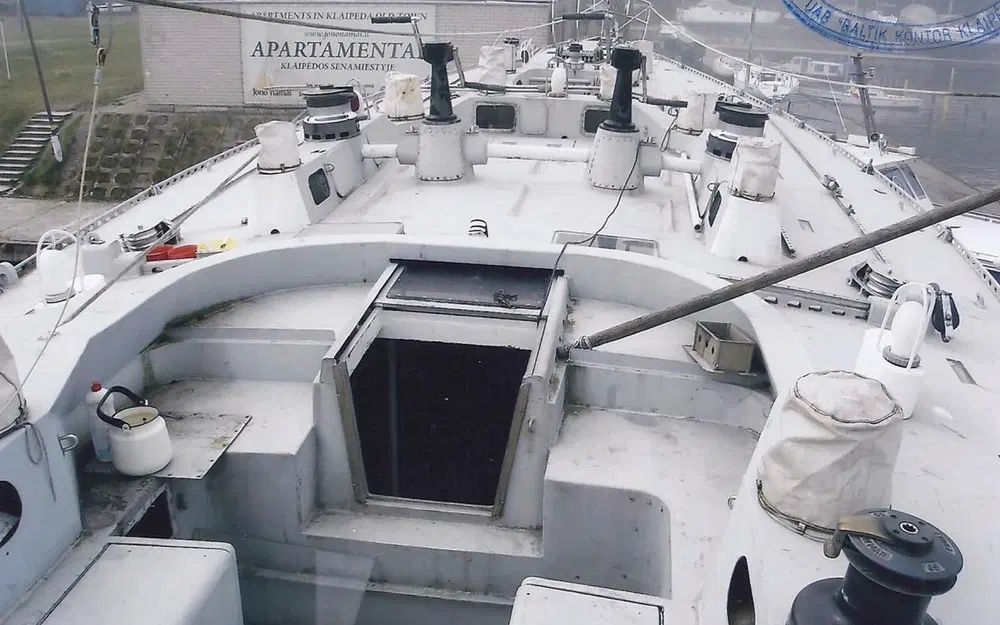

DECK EQUIPMENT

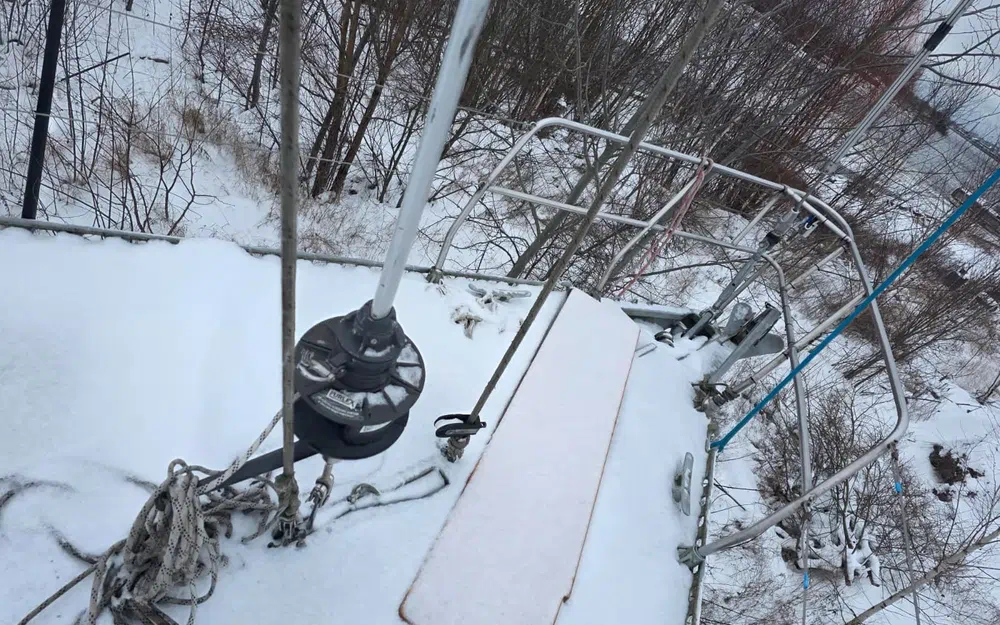

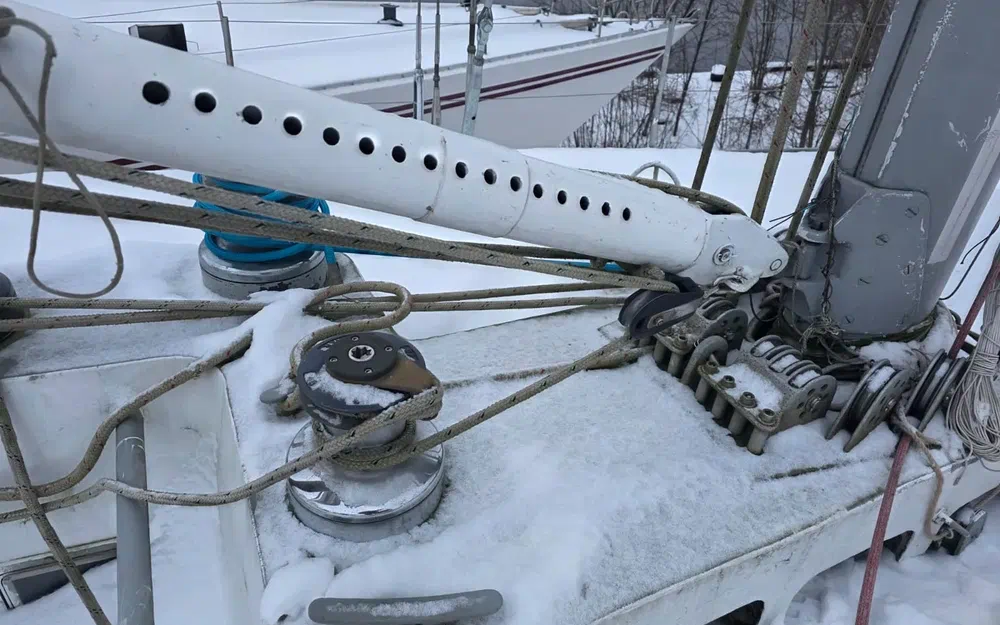

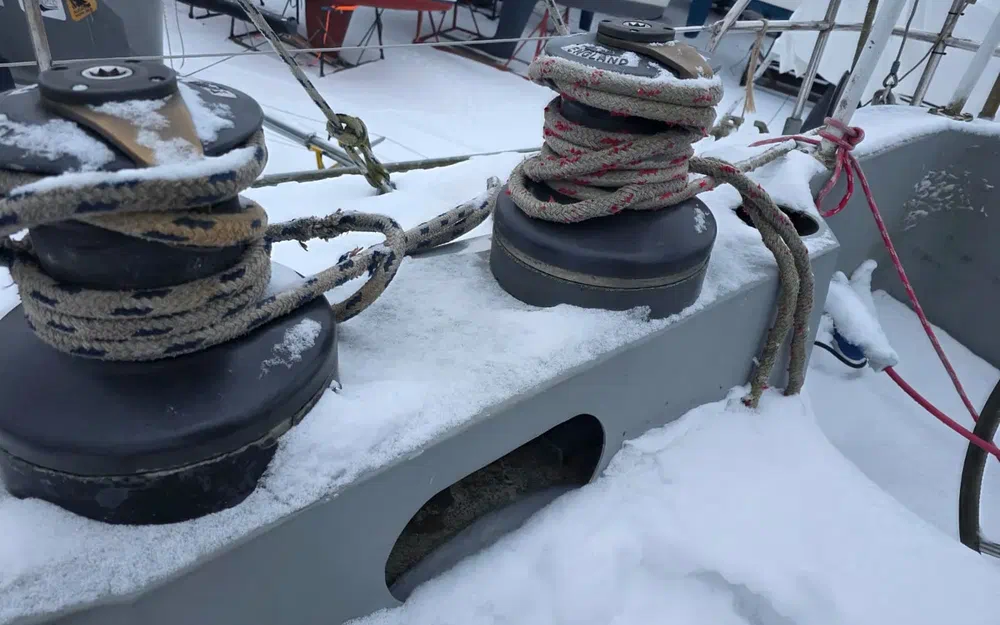

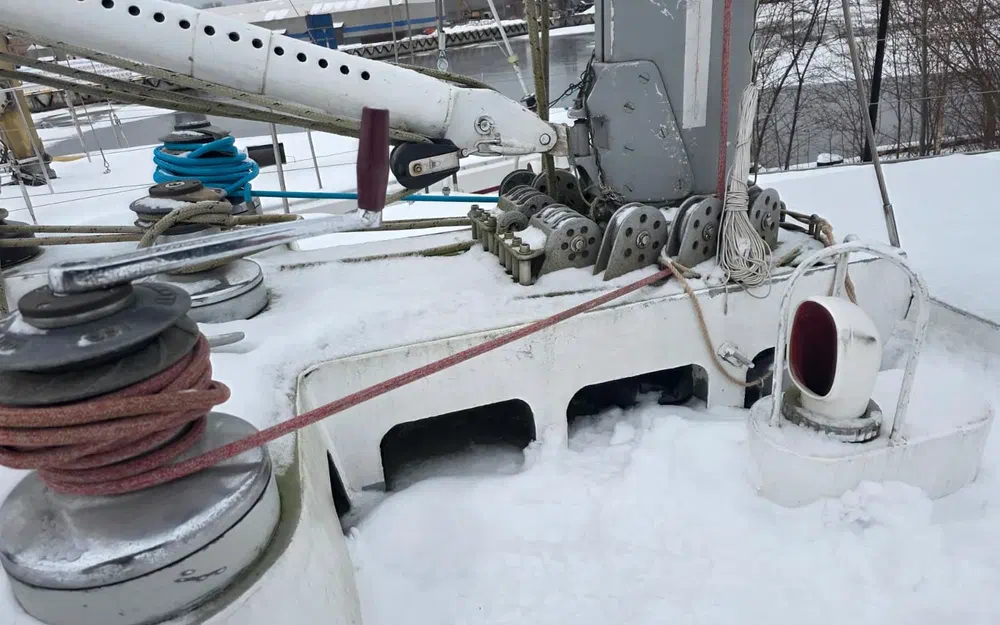

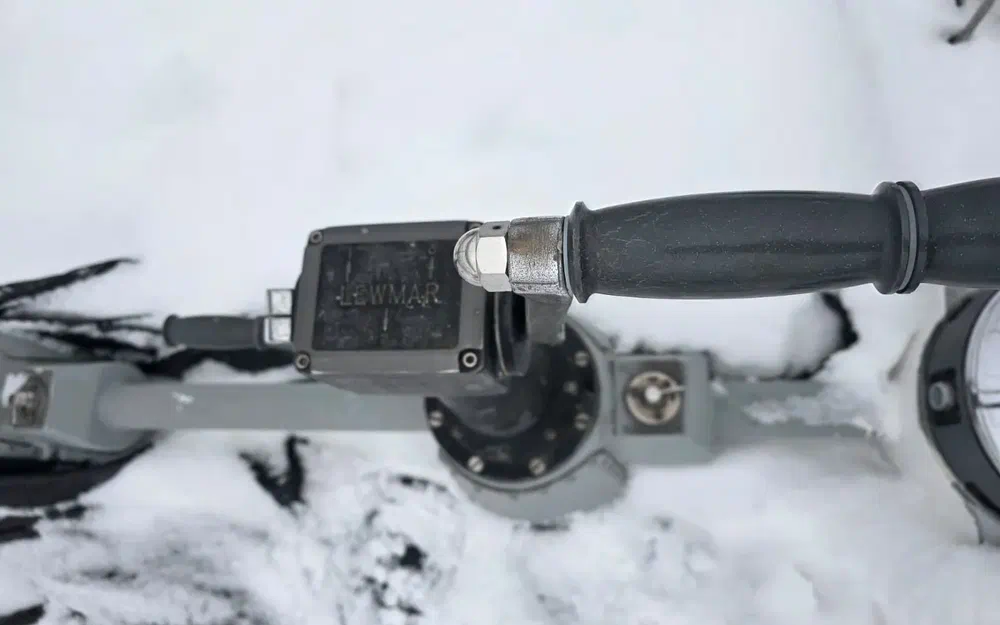

Winches: Lewmar

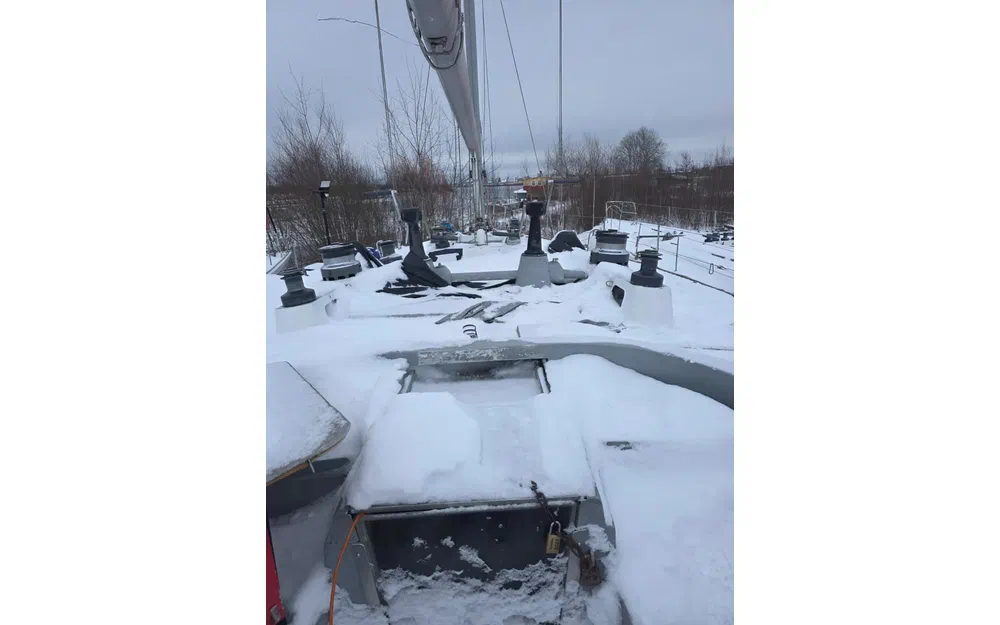

NOTES: The deck is freshly painted,all winches are serviced and working well .

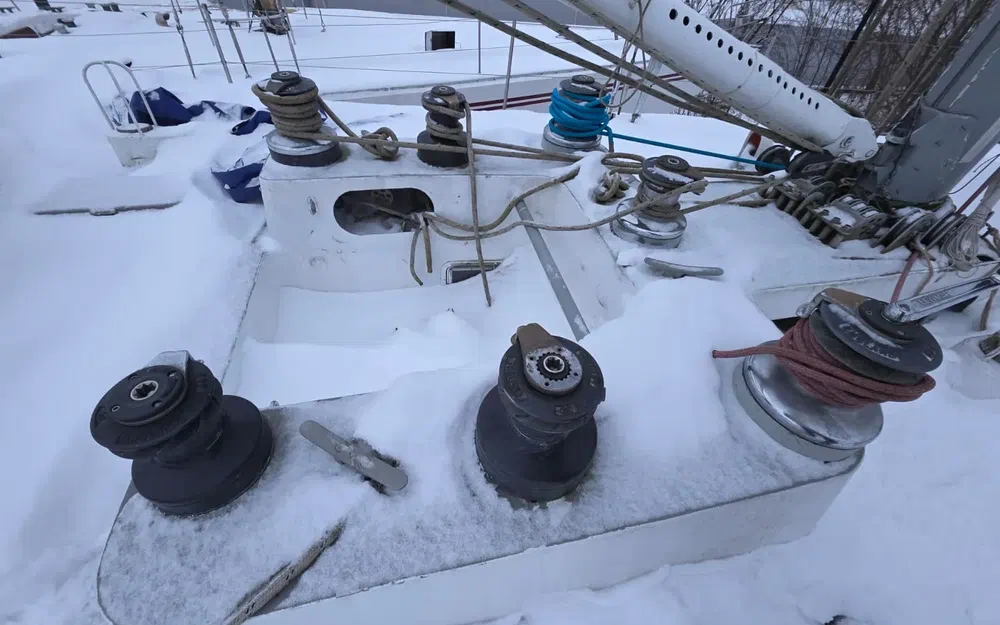

• 16-inch winches.

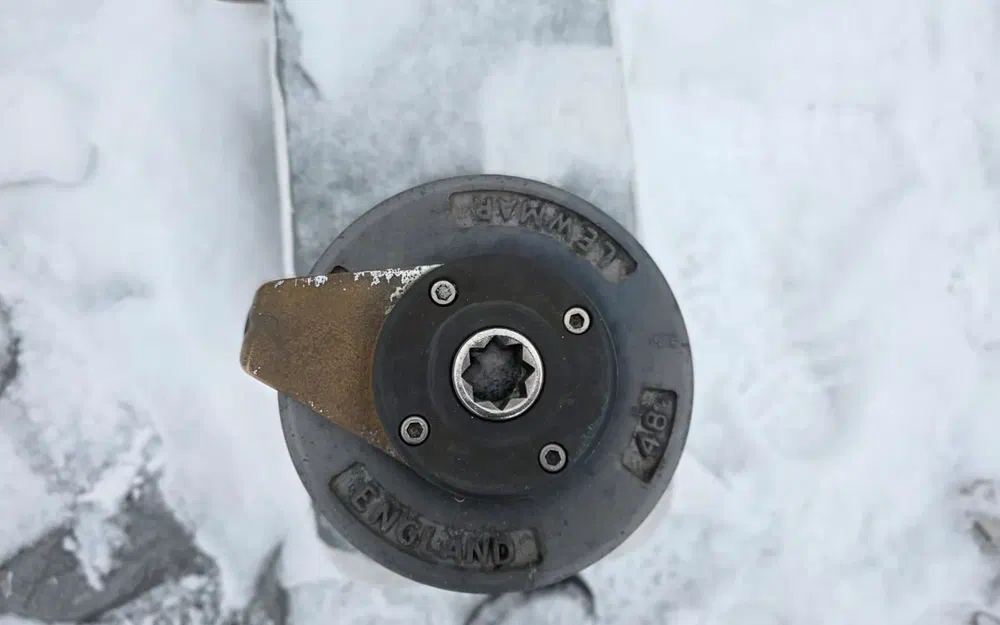

• Most are Lewmar 48-65s.

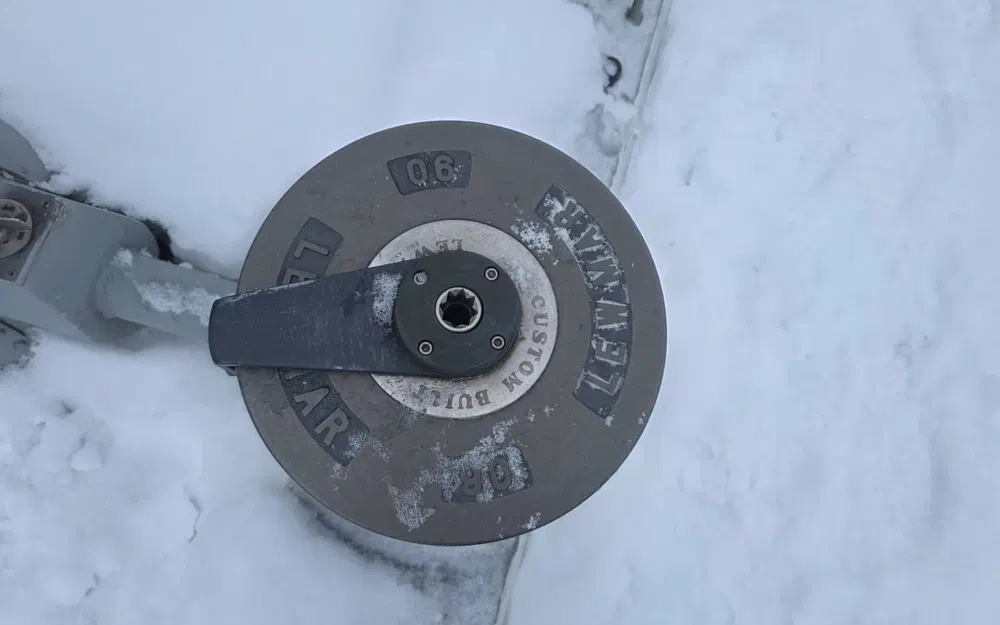

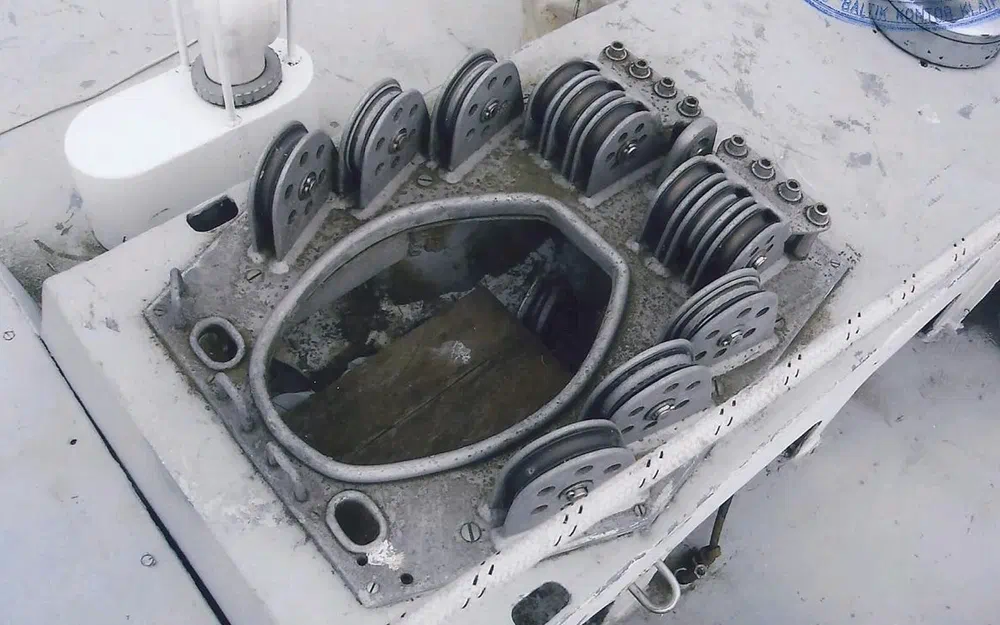

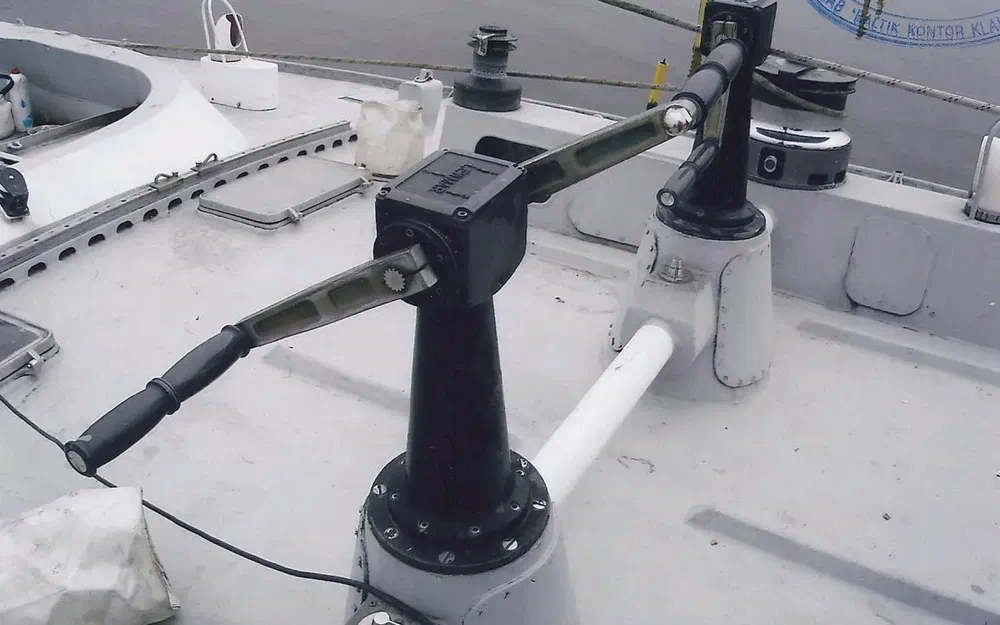

• The mainsail sheets are driven by two windlasses and a Lewmar 90, a custom-built automatic boom motor.
• Many Lewmar self-tailing winches , They are regularly serviced.
• condition of the winches systems: All working

SAILS SAPARS&RIGGING

• There are many sails available.
• 2 mainsails: one brand new, unused.
• New mainsail.
• Approximately 5 to 7 furling fore and aft sails.
• 2 spinnakers (port side).
• There are also some storm jibs.
• All the sails are in very good condition, but they are very heavy.

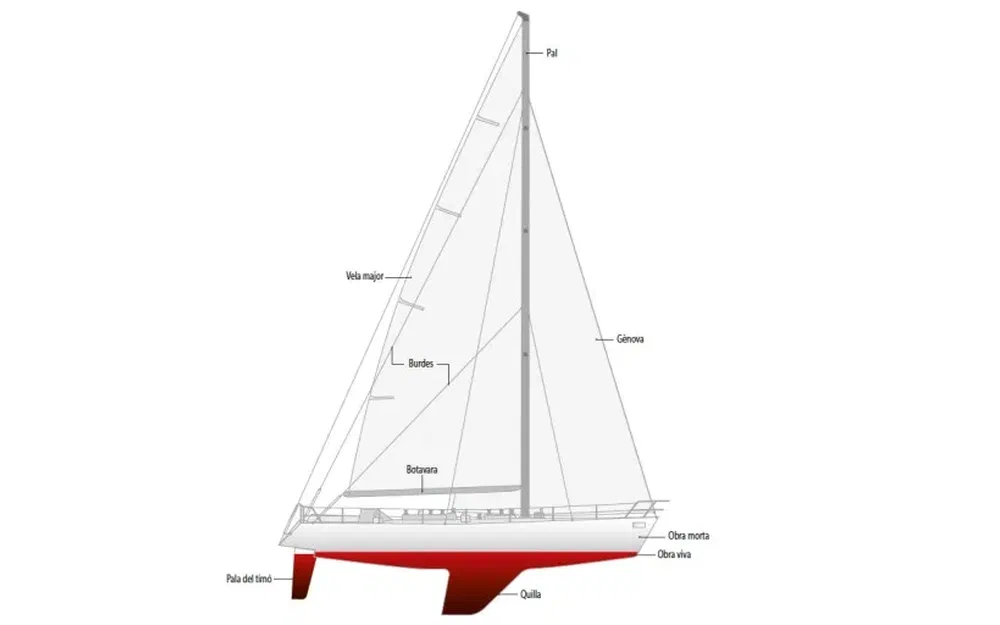

Rigging: Fractional

Mast: Marechal

Boom: Marechal

Vang: mechanical

Spinnaker pole: 1

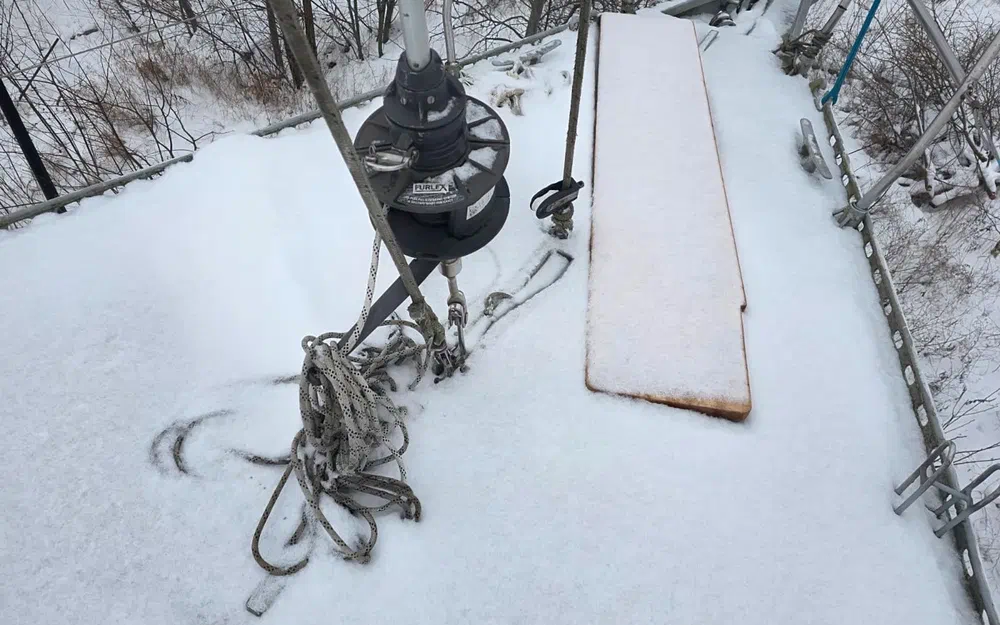

Furling system: Furlex X2; forestay and innerstay Furlex Type D+Type C

NOTES:

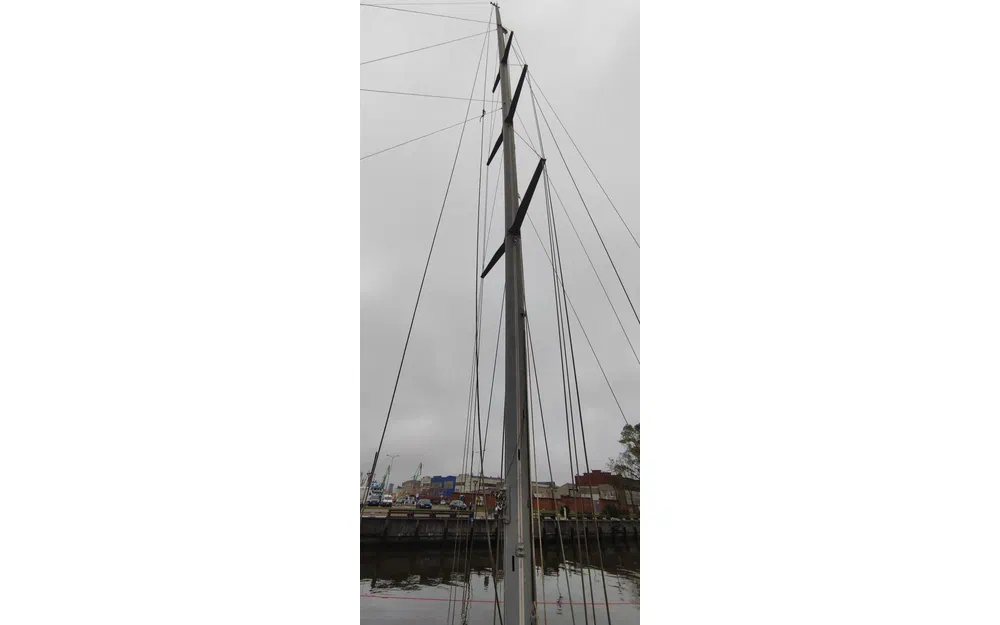

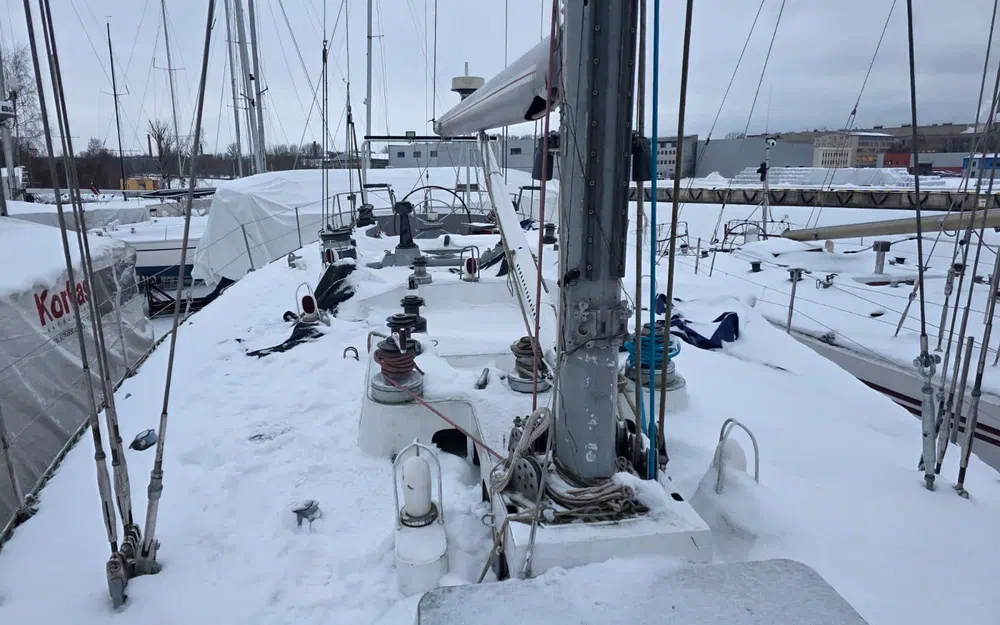

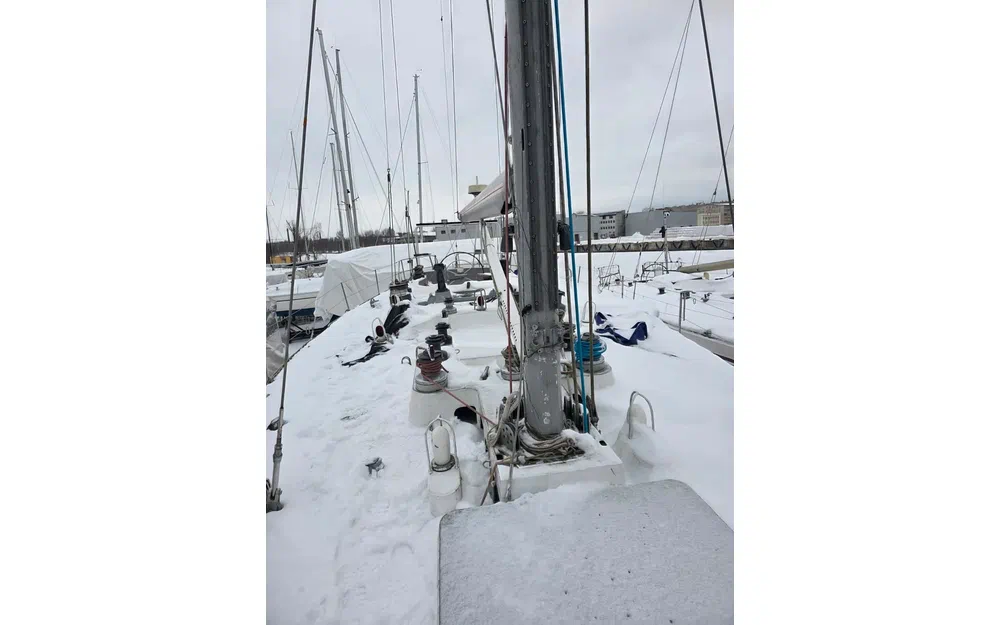

• Mast: The mast is still original but in good condition.

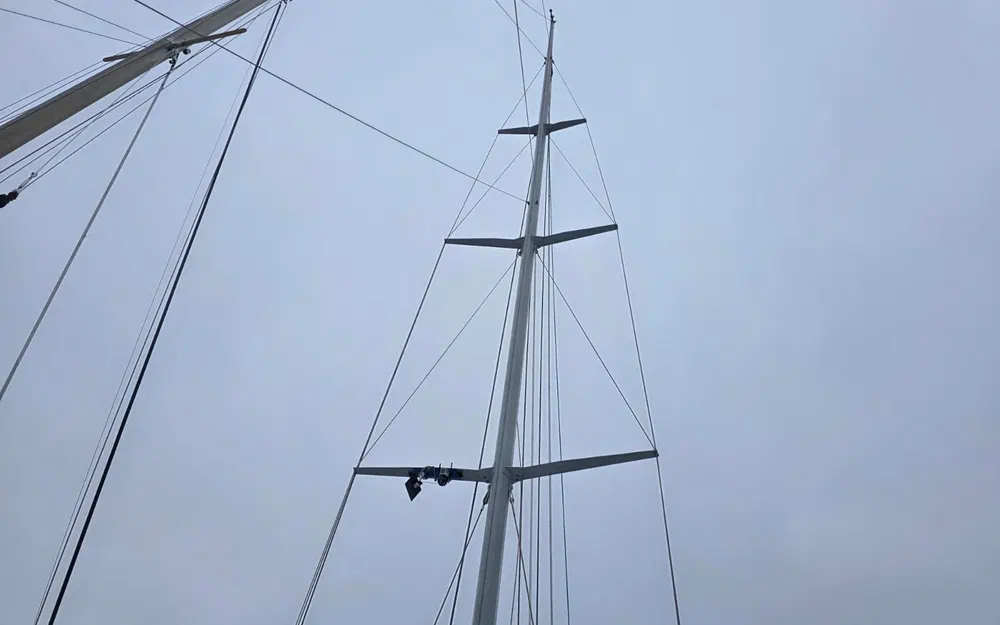

• Mast and Boom: Marechal 7/8 fractional rig with 3 spreaders.
• The two furling systems, types C and D, on the two and three forestays are new. Therefore, six vertical shrouds are required. These will be replaced in the coming months.
• 10-meter boom
• 6-meter spinnaker boom
• There are two furlexes for the bow stay and the interstay.
• standing rigging: data
• Continues rigging: 1x19 2
• furlex in front(one is fast removable)

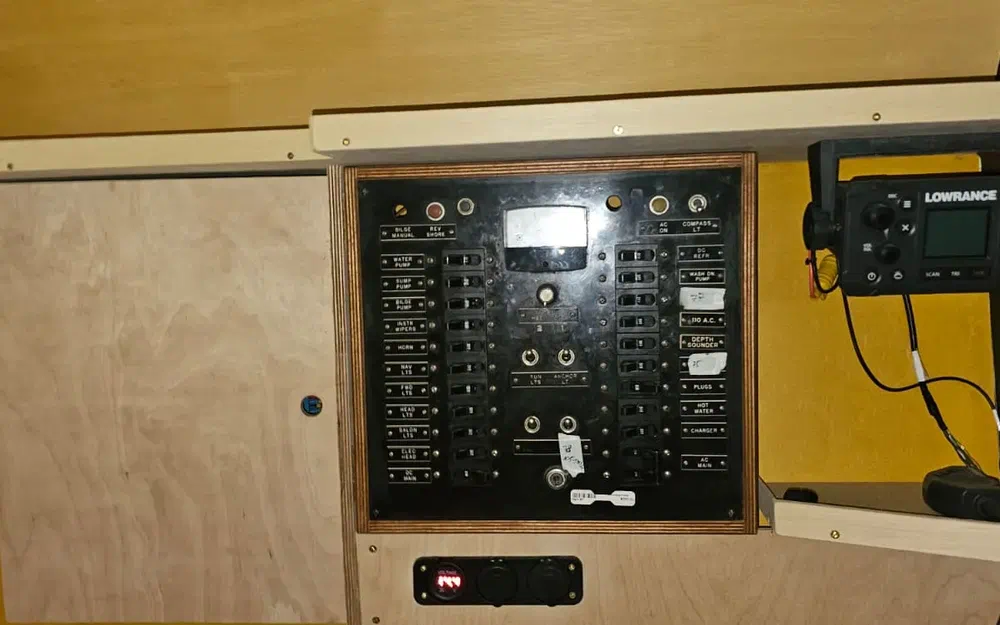

ELECTRICAL

Batteries: 3 2x140 1x100

Battery Charger: Jump starter

NOTES: NEW

• Most of the cables are 2.5 mm², but in places where up to 75 mm² is required (for starter, etc.). It has two independent 12V systems installed.
• All lights are IP69+ rated LEDs. We also have 60W mast lights that illuminate all the rigging at night, and a 35W deck light.
• Generator: Just purchased very little used 6kw marine generator,need to be installed

SAFETY

Fire-extinguishers: 1

Epirb: yes

Liferaft: yes

NOTES: 2xsafety raft 6p (expired need to be reniewed),

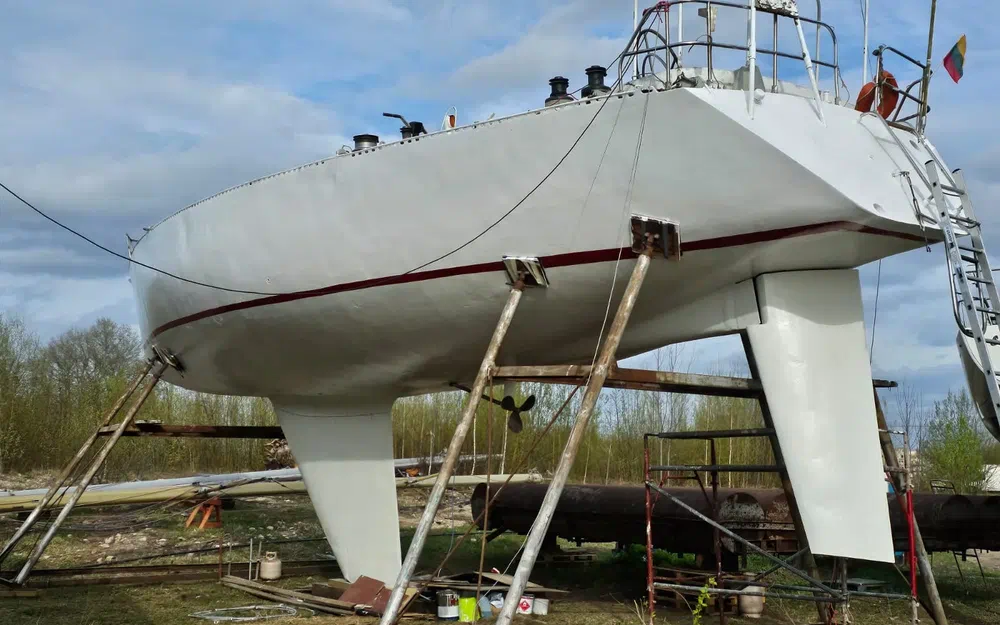

CONSTRUCTION

Keel: lead

KEEL: keel is not removable, keel is welded to the hull from factory.

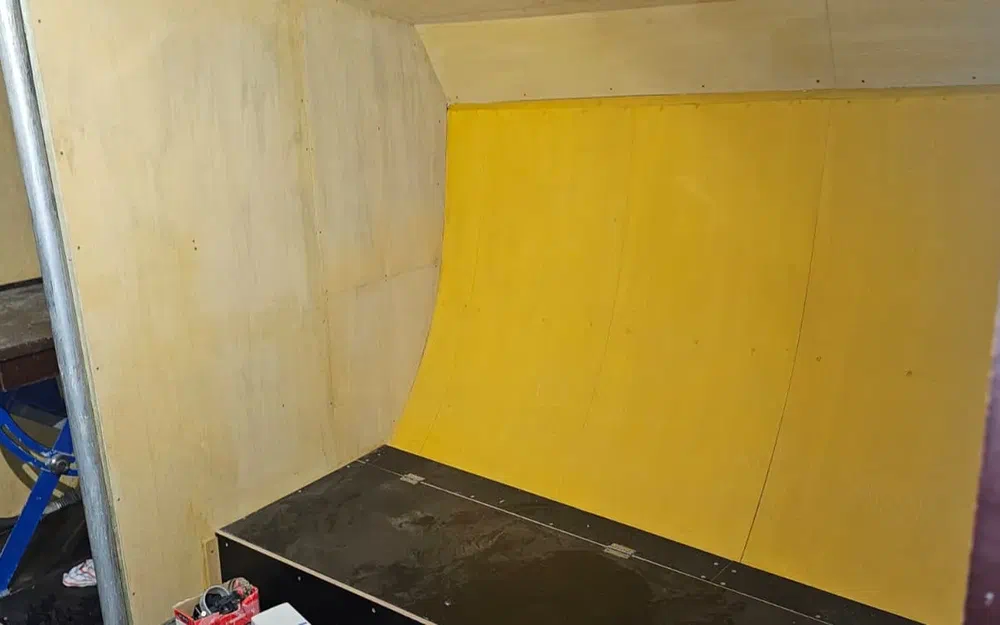

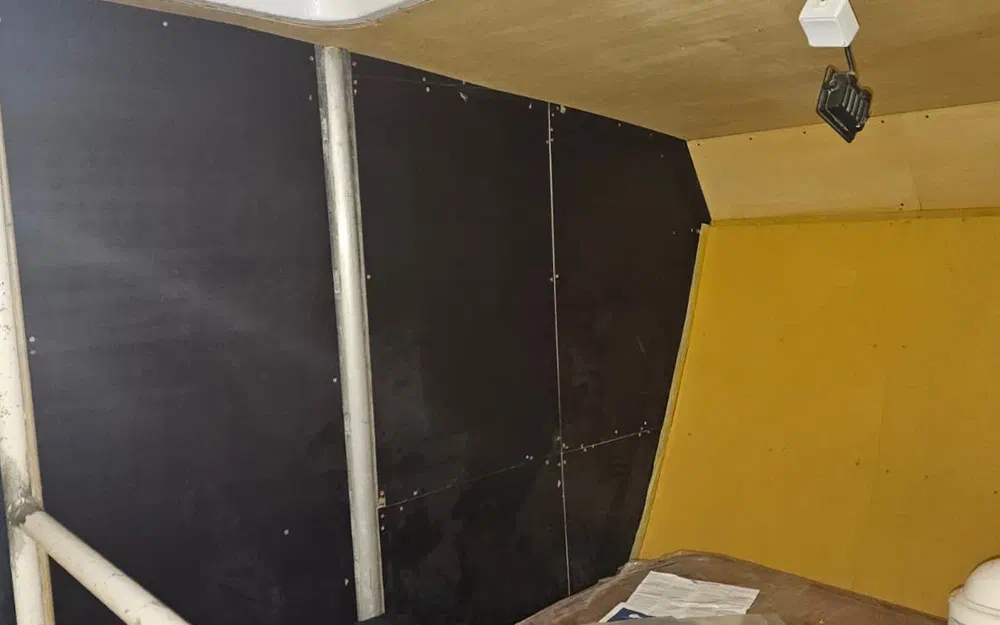

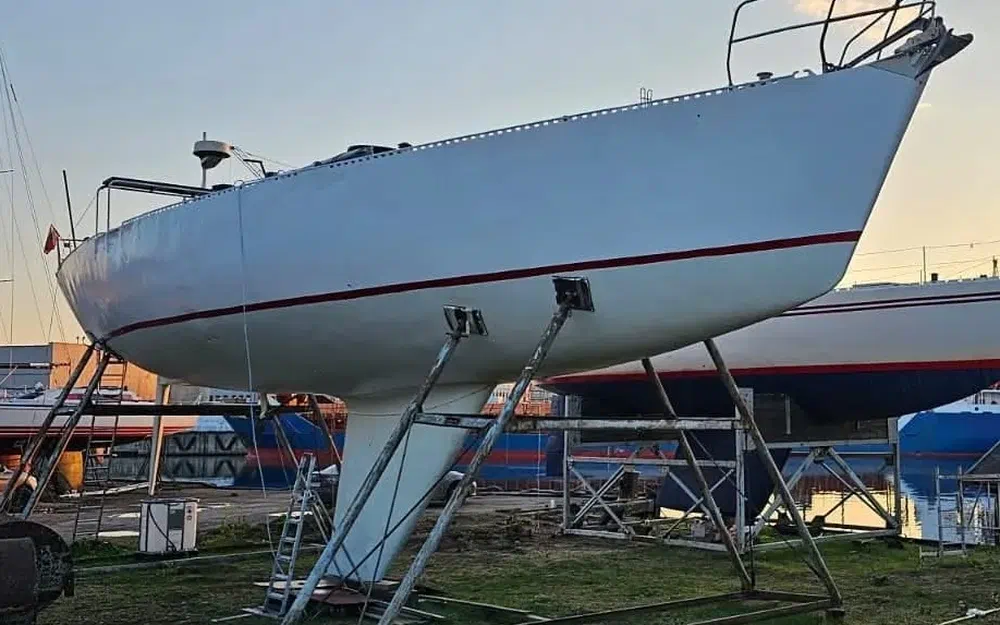

HULL: fiberglass The hull has been insulated with 70 mm fire-retardant expanded polystyrene. The interior is primarily made of marine plywood, which is lighter than usual, and features a 2mm fire-resistant layer beneath the deck. Each panel isn't simply plywood, but a sandwich with polystyrene between the panels (since we had a -31°C winter here in Riga and were able to work thanks to the insulation). As a result, the boat is very warm in winter

and not too hot in summer (over 30°C). The hull is painted with polyurethane paint. Underwater, it has a special zinc primer with antifouling agent (Trilux 33); this combination is very good according to Instruction International.

• Axle: both bearings are new.

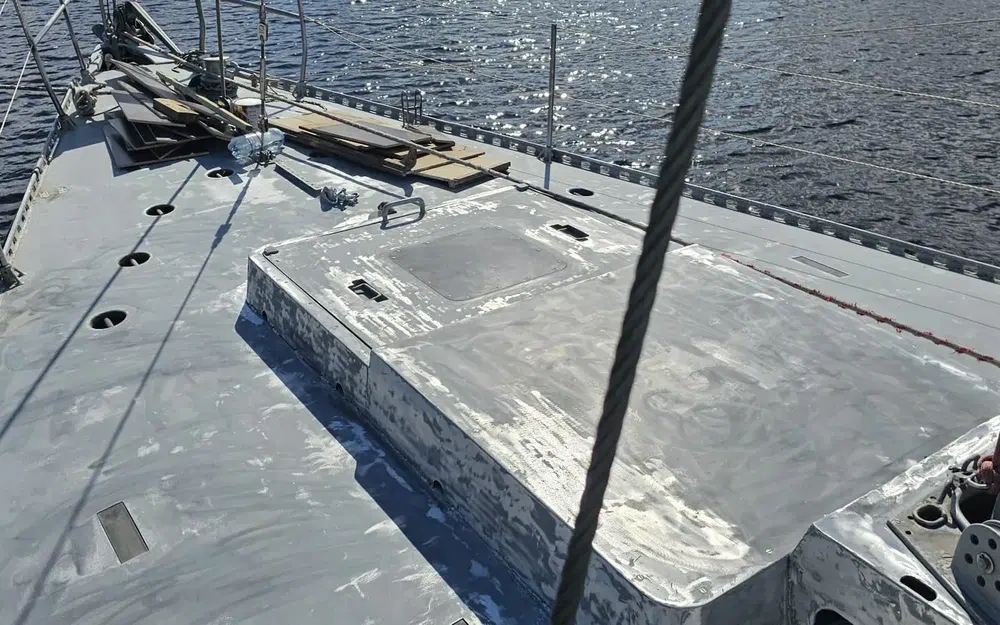

• The deck was painted last year (another big project).
• The deck is painted with International non-slip paint and a double coat of epoxy primer.
• The keel is welded to the hull and is an integral part of the boat; it is not removable or riveted. The factory-welded keel is a spare 450-liter fuel tank. The ballast weighs approximately 7.5 tons (according to the previous owner's calculations).
• Thicknes and state of the aluminum
• From 6.5mm till 11.3
• The bottom of the boat is from factory 12mm,lowest what I found closer to keel was 11.3
• Freeboards 6.5
• Deck 5mm

NOTES FROM OWNER ABOUT HULL:

The boat for last 20 years was ashore without any electricity or water so thats why the hull is like yesterdayly build condition,no any sigh of corrosion,any check is welcome any time.

Deck 4.5mm

Freeboards 6mm

Below waterline 11.7mm

keel plate dont know but too solid

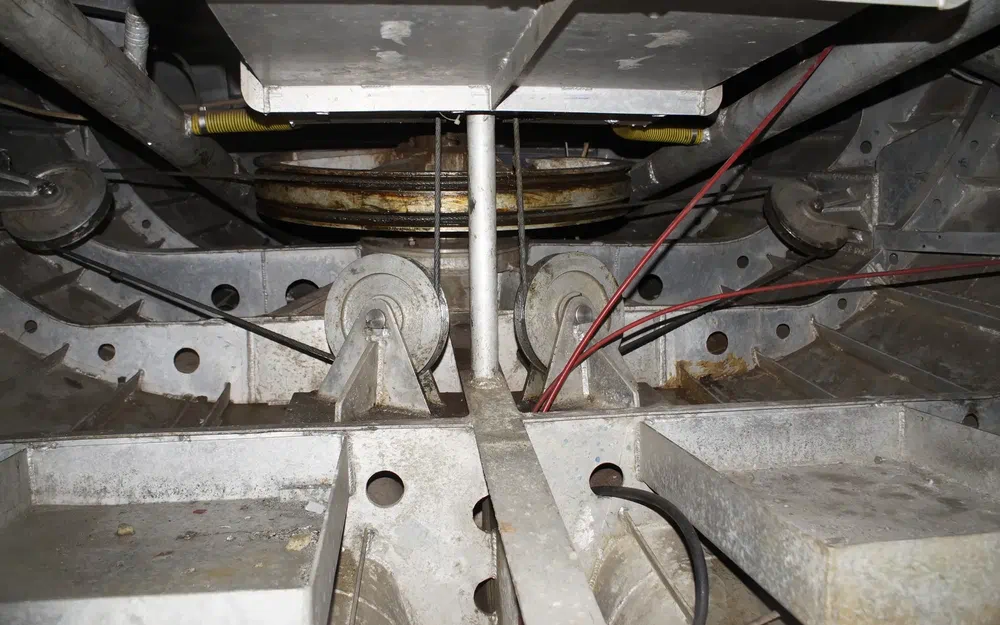

Main stringers 30mm SOLID

Secondary Tstringers 8mm

Thirdly crossed =Xstringers 6mm

Insulation is When i put boat back on shore in riga for refit we insulate the hull with 100mm flame retardant expanded polysterene,because we understood that boat from the beginning needs to be safe.( Dow Styrofoam XPS)Certified one.

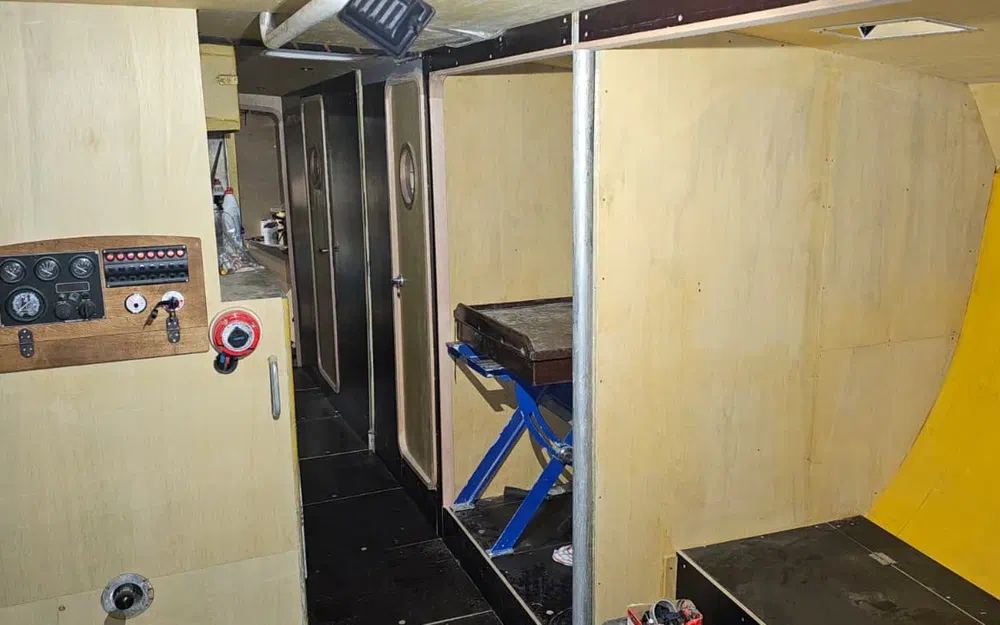

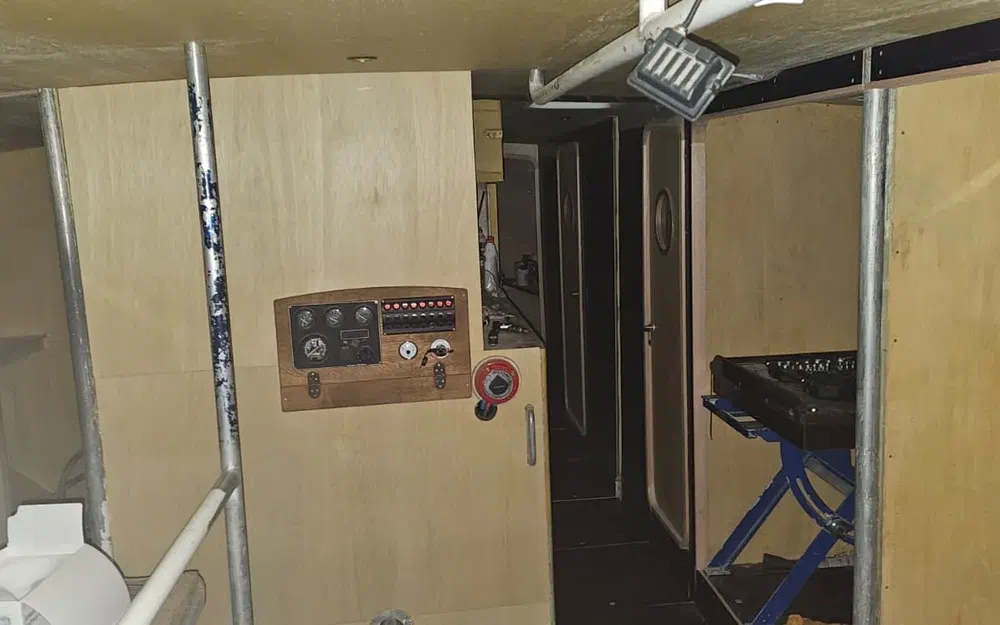

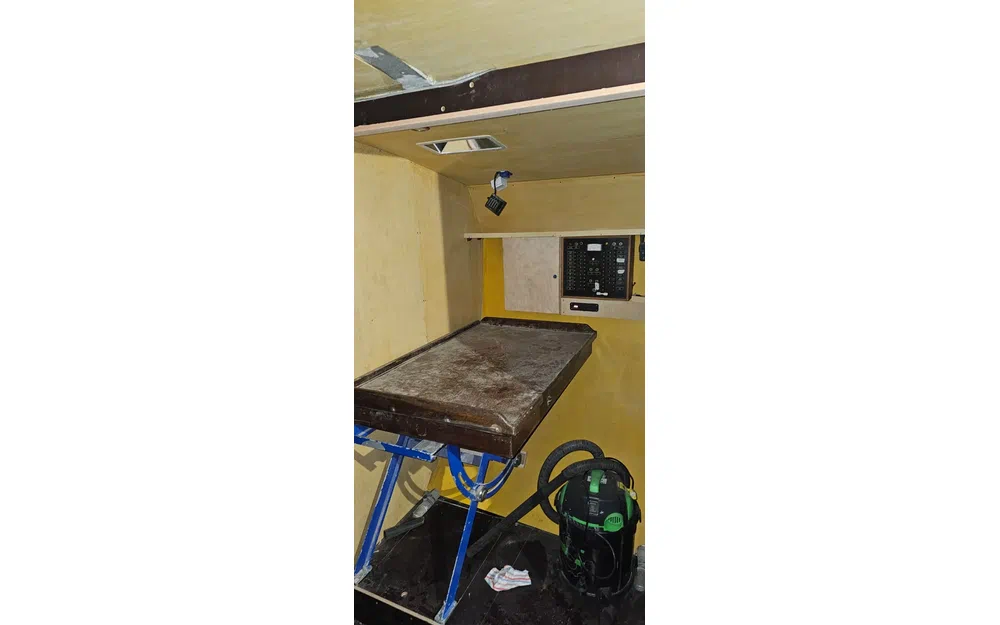

ACCOMMODATIONS

Berths number: 14

Cabins number: 6

Cabin height: 2.03 m

Shower: yes

Heating: 8kw heater,installation in process

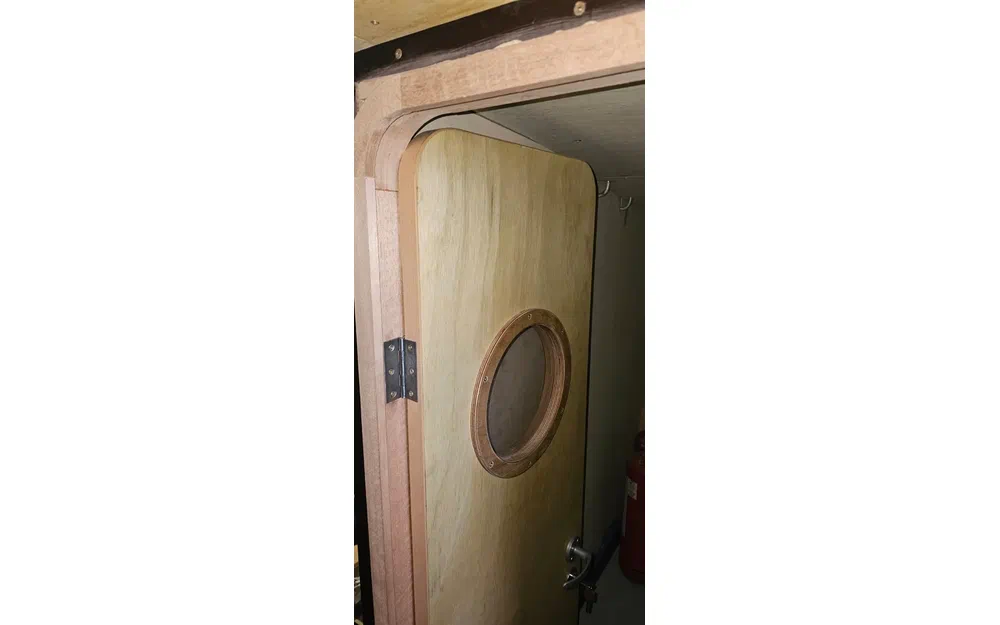

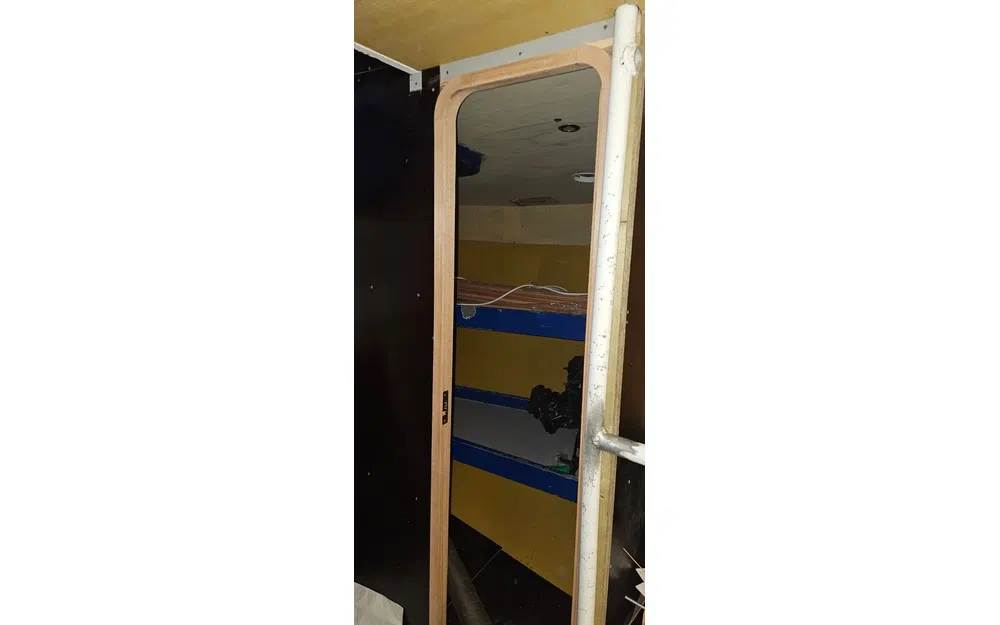

 Notes: Full new interior
